Metric Female 24 Degree Cone O-Ring H. T. Hydraulic Hose Fitting
Product DescriptionMetric Female 24 Degree Cone O-ring H.T. Hydraulic Hose FittingType: METRIC FEMALE 24 DEGREE CONE O-RING H.T.ISO 12151-2 - DIN 3865 Material: carbon steel 45# with zinc plated (Cr +3) stainless steel 304 stainless steel 316Size: 3/16" to 2"Ho......
Send Inquiry

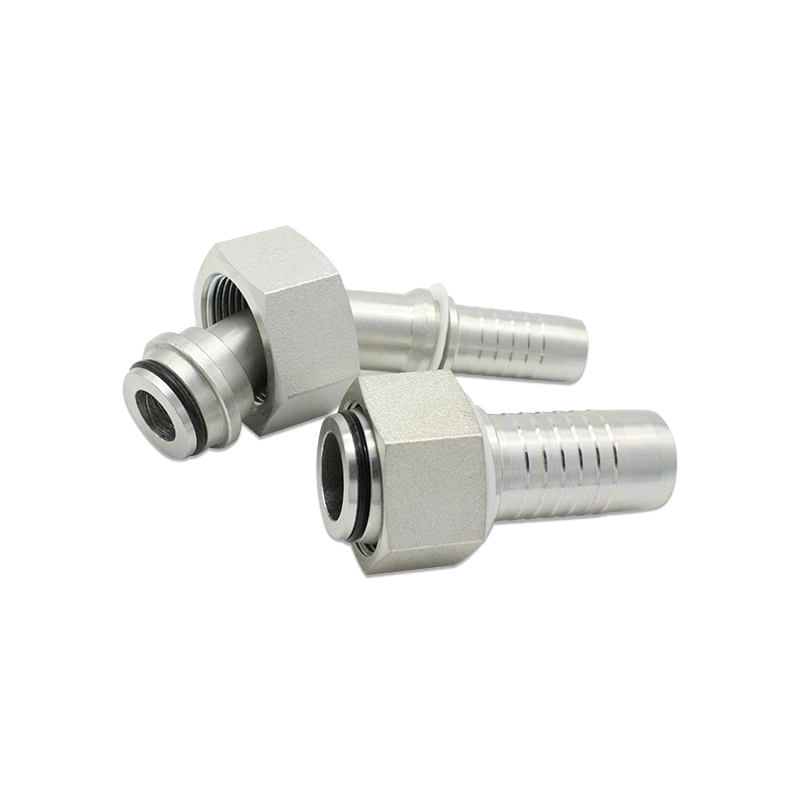

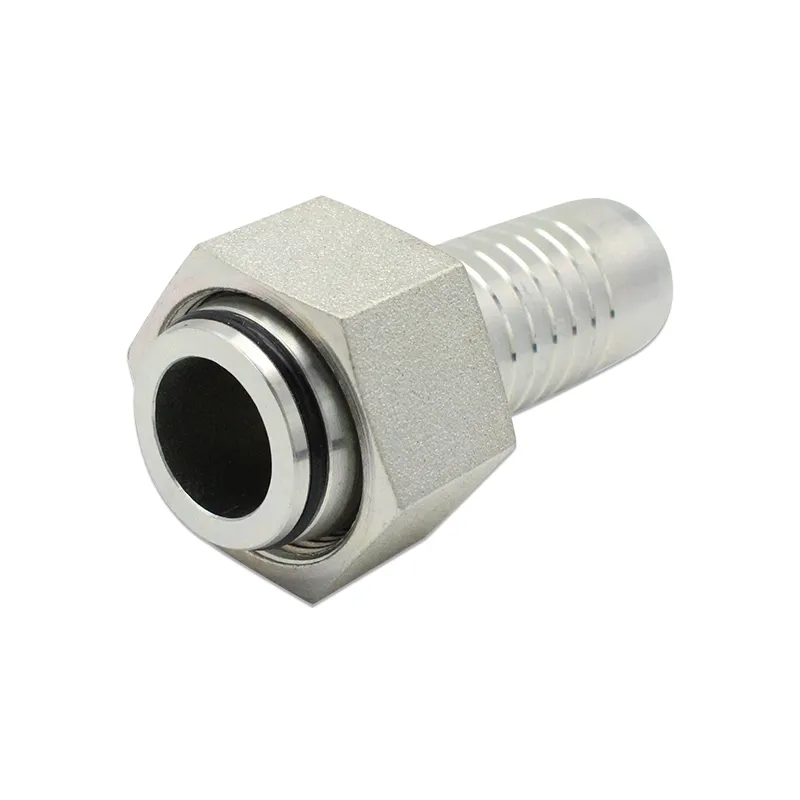

Product Description
Metric Female 24 Degree Cone O-ring H.T. Hydraulic Hose Fitting
Type:
METRIC FEMALE 24 DEGREE CONE O-RING H.T.ISO 12151-2 - DIN 3865
Material: carbon steel 45# with zinc plated (Cr +3)
stainless steel 304
stainless steel 316
Size: 3/16" to 2"
Hose: 1 or 2 textile, wire braided high pressure hydraulic hose. (20511)
4 wire spiral reinforced high pressure hydraulic hose. (20512)
Applications:
Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation and other industries.
METRIC FEMALE 24 DEGREE CONE O-RING H.T.ISO 12151-2 - DIN 3865
20511 20511-T
| Part No. | Thread E | Hose Bore | THBE O.D. | Dimensions | O-ring | |||
| DN | DASH | A | C | S1 | ||||
| 20511-14-04 | M14X1.5 | 6 | 04 | 6 | 29 | 1.5 | 19 | O04.5X1.5 |
| 20511-16-04 | M16X1.5 | 6 | 04 | 8 | 29 | 1.5 | 22 | O06.5X1.5 |
| 20511-16-05 | M16X1.5 | 8 | 05 | 8 | 29 | 1.5 | 22 | O06.5X1.5 |
| 20511-18-04T | M18X1.5 | 6 | 04 | 10 | 25.5 | 1.5 | 22 | O08.0X1.5 |
| 20511-18-06 | M16X1.5 | 10 | 06 | 10 | 29 | 2 | 24 | O08.0X1.5 |
| 20511-20-06T | M20X1.5 | 10 | 06 | 12 | 26.5 | 2.5 | 24 | O10.0X1.5 |
| 20511-20-08 | M20X1.5 | 12 | 08 | 12 | 31.5 | 2.5 | 27 | O10.0X1.5 |
| 20511-22-06T | M22X1.5 | 10 | 06 | 14 | 26.5 | 3 | 27 | O11.0X1.5 |
| 20511-22-08 | M22X1.5 | 12 | 08 | 14 | 31.5 | 2.5 | 27 | O11.0X1.5 |
| 20511-24-06T | M24X1.5 | 10 | 06 | 16 | 27 | 3 | 30 | O13.0X2.0 |
| 20511-24-08T | M24X1.5 | 12 | 08 | 16 | 27.5 | 3 | 30 | O13.0X2.0 |
| 20511-30-10T | M30X2 | 16 | 10 | 20 | 33 | 2.5 | 36 | O16.3X2.4 |
| 20511-30-12 | M30X2 | 20 | 12 | 20 | 39 | 3 | 36 | O16.3X2.4 |
| 20511-36-12T | M36X2 | 20 | 12 | 25 | 35 | 3.2 | 46 | O20.3X2.4 |
| 20511-36-14T | M36X2 | 22 | 14 | 25 | 34 | 3.2 | 46 | O20.3X2.4 |
| 20511-42-12T | M42X2 | 20 | 12 | 30 | 37.5 | 3.9 | 50 | O25.3X2.4 |
| 20511-42-16T | M42X2 | 25 | 16 | 30 | 38.5 | 3.9 | 50 | O25.3X2.4 |
| 20511-52-20T | M52X2 | 32 | 20 | 38 | 41.5 | 4.5 | 60 | O33.3X2.4 |
| 20511-52-24T | M52X2 | 40 | 24 | 38 | 41.5 | 4.5 | 60 | O33.3X2.4 |
Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 20512-**-**.
Packaging: Well packed by cartons and free fumigating wooden box.

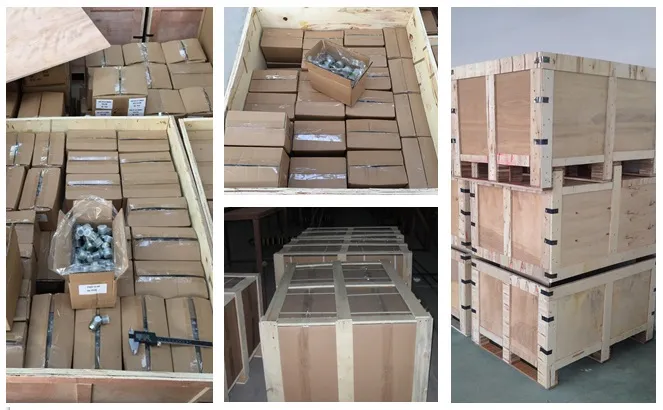

Strong Packaging of Hydraulic Hose Fitting from PAISHUN

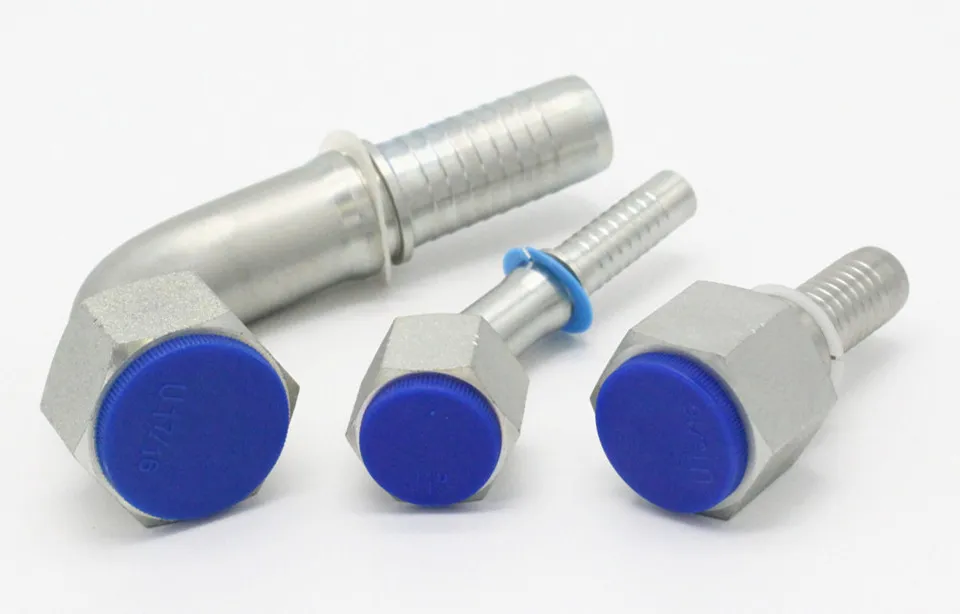

All fittings are with PVC plastic caps and plugs to protect against Dust.
All fittings are packed in good quality strong cartons ( 5 layers corrugated) with a plastic sheet inside for protection.
In order to guarantee that even in worst sea / maritime weather/transport conditions, the fittings shall arrive at the final destination in perfect condition without corrosion caused by sea salt and humidity.
Normal Measure:
Carton:24cm X 15cm X 15cm
Wooden box: 110cm X 85cm X 75cm
Usually 80 cartons can be packed in a wooden box.
Surely we can be customized the measure according to your request.
