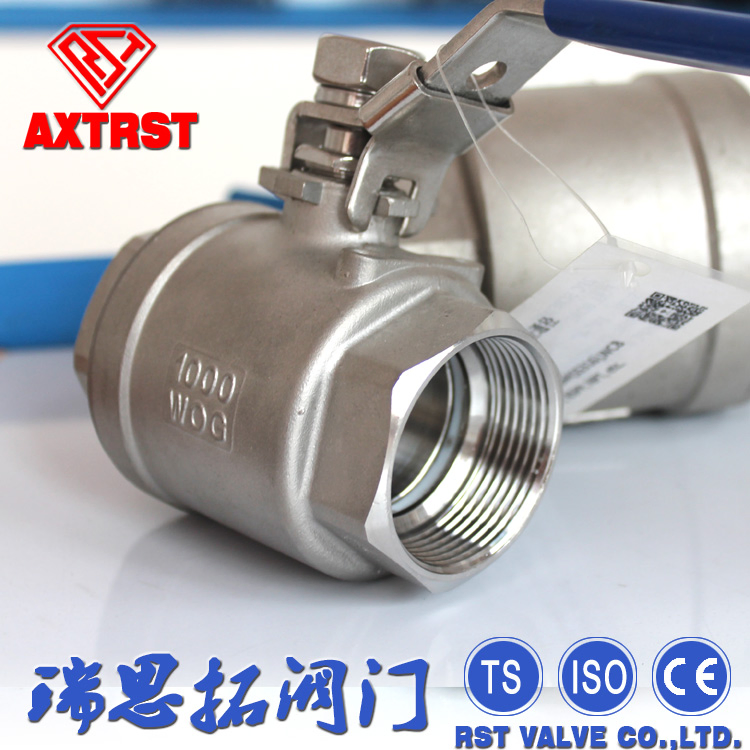

Valvula Bola Inox T316 T304 2PC Threaded Ball Valve
Valvula Bola Inox T316 T304 2pc threaded Ball ValveRST Valve company is a industry valves manufacturer, including Thread & Flange Ball Valves, Gate Valves, Globe Valves, Check Valves, Y Strainers in stainless steel, carbon steel, cast steel, forged steel and alloy steel.2PC Stainless Steel Threa......
Send Inquiry
Product Description
- RST Valve company is a industry valves manufacturer, including Thread & Flange Ball Valves, Gate Valves, Globe Valves, Check Valves, Y Strainers in stainless steel, carbon steel, cast steel, forged steel and alloy steel.
- 2PC Stainless Steel Thread Ball Valve includes 2PC Thread 1000WOG Ball Valve, Two Piece Floating 2000PSI Ball Valve, Full Port 2 Piece Male Thread Ball Valve, Stainless Steel 2PC Economic type Ball Valve, 2 Piece Korean Reduce Port Ball Valve, Two Piece Floating Ball Valve with ISO5211 High mounting Pad, 2PC Pneumatic Ball Valve, Two Piece CF8M Motorized Ball Valve, 2PC Full Port Floating Ball Valve with Electric Actuator.
- Stainless steel ball valve should not be confused with a "ball-check valve", a type of check valve that uses a solid ball to prevent undesired backflow. There are five general body styles of ball valves: single body, three-piece body, split body, top entry, and welded. The difference is based on how the pieces of the valve-especially the casing that contains the ball itself-are manufactured and assembled. The valve operation is the same in each case. In addition, there are different styles related to the bore of the ball mechanism itself.
| Product Name | Valvula Bola Inox T316 T304 2pc threaded Ball Valve |
| 1. Material | SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc. |
| 2. Size | 1/4''~4'' ( DN6~DN100) |
| 3. Thread standard | ISO9001 & CE, TS |
| 4. Port | Full Port |
| 5. Working Pressure | 1000WOG( PN64/6.4 Mpa) |
| 6. Connection Ends | NPT/BSP/BSPT/DIN259/DIN2999 |
| 7. Working Temp. | -20~300ºC, or according to customer requirements for different industry. |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Locking | Option |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 15~20 Days |

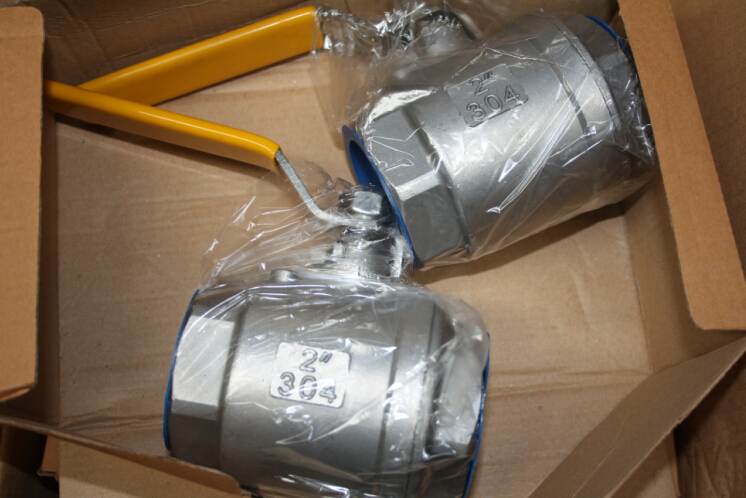

| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping or against copy of BL | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
Competitive Advantage:
1. Our products is guaranteed within 18 months after delivery.
2. We pay much attention to technology renovation, process improvement, structure optimization and quality improvement.
3. We have excellent after-sales service system, providing timely and optimal service, which help you to win the market.
4. We have convenient shipping sea port, and standard exporting carton boxes & plywood cases.
Materials & Measurements
Materials List
| Item | Part Name | Material | Qty |
| 1 | Body | A351 CF8M/CF8 | 1 |
| 2 | End Cap | A351 CF8M/CF8 | 1 |
| 3 | Ball | 316SS/304SS | 1 |
| 4 | Seat | RTFE | 2 |
| 5 | Body Seal | PTFE | 1 |
| 6 | Thrust Washer | RTFE | 1 |
| 7 | Stem Packing Set | PTFE | 1 |
| 8 | Packing Gland | 304SS | 1 |
| 9 | Stem | 316SS | 1 |
| 10 | Belleville Washer | 301SS | 2 |
| 11 | Gland Nut Lock Washer | 304SS | 1 |
| 12 | Handle | 301SS | 1 |
| 13 | Handle Nut | 304SS | 1 |
| 14 | Handle Cover | Vinyl | 1 |
Note: All the data should be confirmed with the approved drawings of manufacturer.
RST VALVE is looking forward to strengthening cooperation with various sectors of society to create brilliancy together.
RFQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
