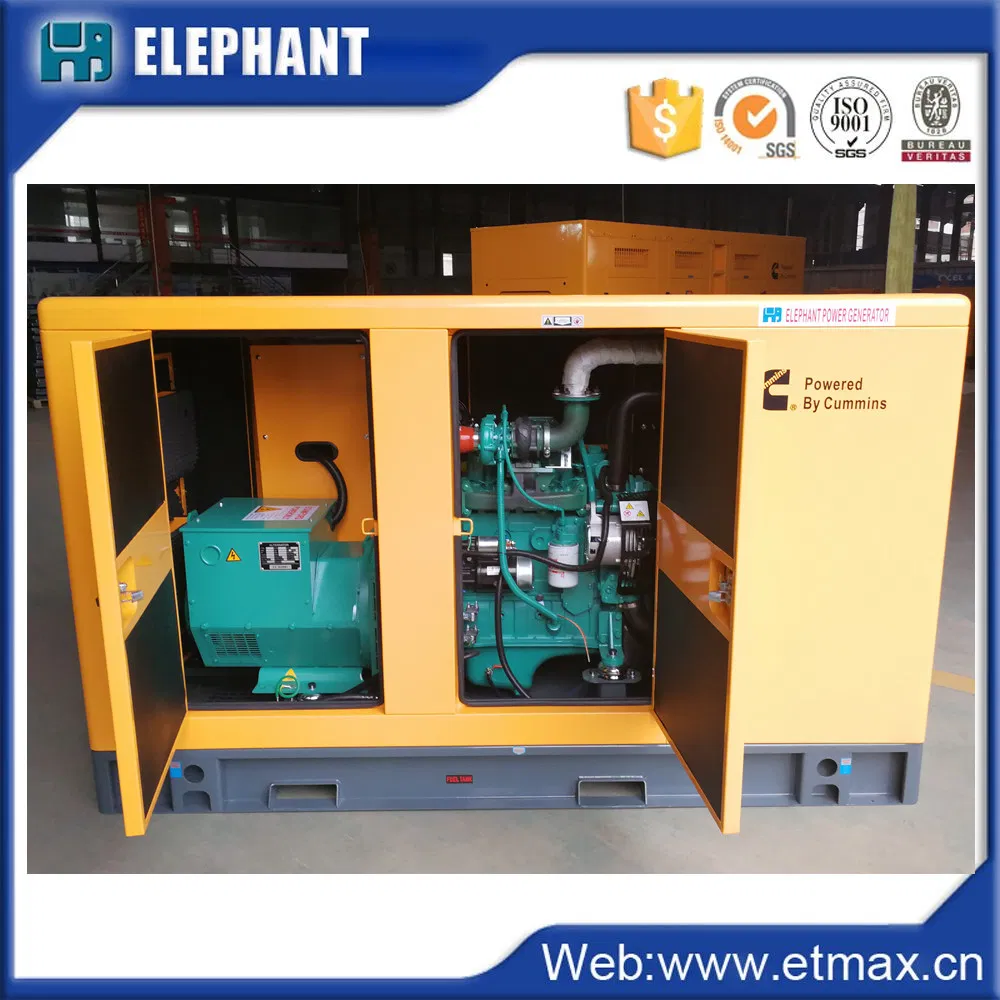

45kw 56kVA Cummins Silent Brushless with AVR Diesel Generator Set
√ Specializing In diesel Generator 12 Years == √ Factory == √ Own Exporting License ==√ Strict Quality Control == √Competitive Price == √ Own Technology ==√ OEM & ODM == √ Prompt Delivery Time == √ Good R......
Send Inquiry
Product Description
√ Specializing In diesel Generator 12 Years == √ Factory == √ Own Exporting License ==√ Strict Quality Control == √Competitive Price == √ Own Technology ==√ OEM & ODM == √ Prompt Delivery Time == √ Good Reputation
45kw 56kVA Cummins Silent Portable Diesel Generator Set
45kw 56kVA Cummins Silent Portable Diesel Generator Set
| Product Overview | |
| 1) Brand-new engine,w/start motor. | |
| 2) Brushless alternator,single bearing,flange connection,IP22,H insulation class,with AVR. | |
| 3) Auto control panel with LCD display. | |
| 4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. | |
| 5) Circuit Breaker,Exhaust Silencer. | |
| 6) Copper Radiator for 50ºC ambient temperature and double-deck cooling,with fan guard and front guard. | |
| 7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. | |
| 8) Skid-mounted bottom 8 hours fuel tank. | |
| 9) Extemal recessed emergency stop button for extra safety. | |
| 10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. | |
| 45KW/56KVA CUMMINS diesel generator | |
| Genset Specification | |

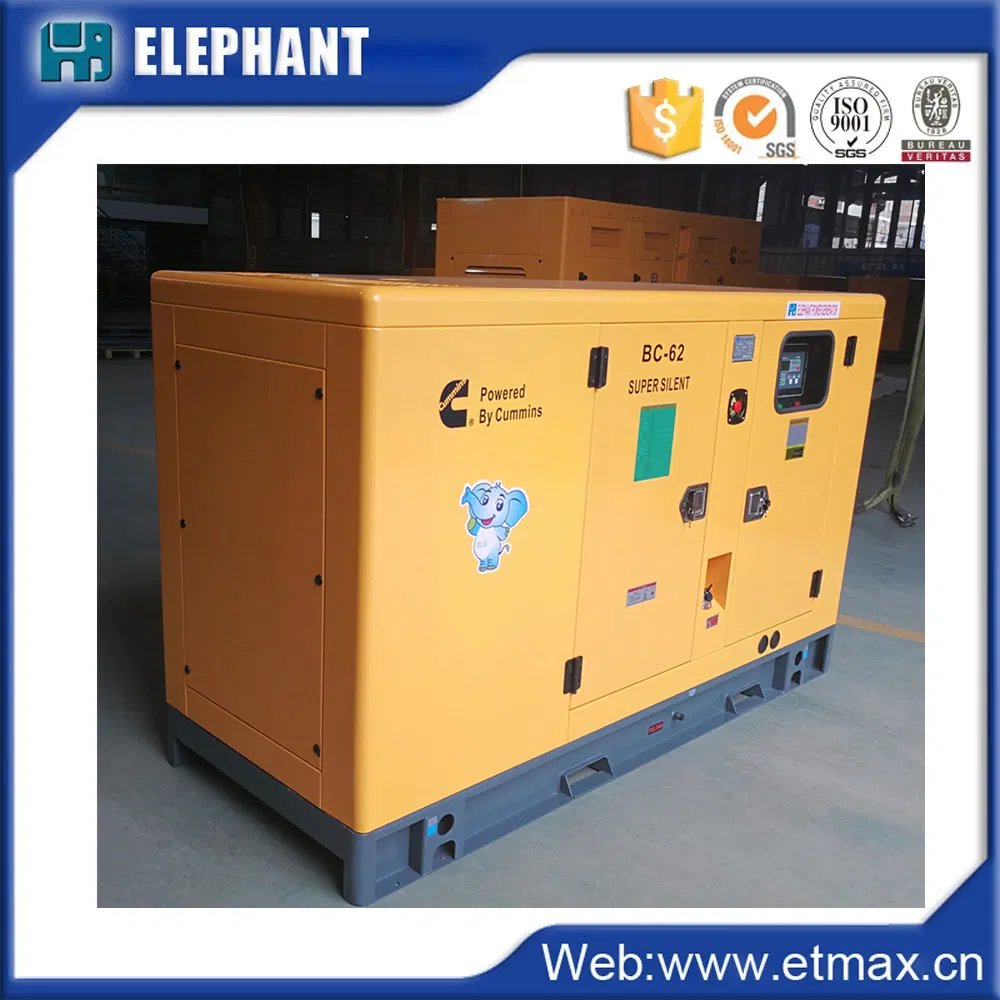

| Genset Model | BC62 |
| Prime Power(Kw/Kva) | 45KW/56KVA |
| Standby Power(kw/kva) | 50KW/62KVA |
| Frequency | 50Hz |
| Structure type | Open or Soudproof |
| Engine Model | 4BTA3.9-G2 |
| Alternator Model | STG224E |
| Open type DimensionL*W*H(mm) | 1860*760*1380 |
| Weight(Kg) | 980 |
| Silent type DimensionL*W*H(mm) | 2440*1060*1680 |
| Weight(Kg) | 1450 |
| Engine Detail | |
| Manufacturer | Chongqing Cummins engine Co.,Ltd |
| Model | 4BTA3.9-G2 |
| Type | vertical,4 cylinder,in-line,water-cooled,four-stroke |
| Governor | electrical |
| Bore*Stroke | 102*120mm |
| Displacement | 3.9L |
| Compression ratio | 16.5:1 |
| Alternator Detail | |
| Model | STG224E |
| Output power(Kw/Kva) | 48KW/60KVA |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | ≤1% |
| Total haarmonics (TGH/THC) | ≤3% |
| Wave form:Nema=TIF | ≤50 |
| Wave form:I.E.C=THF | ≤2% |
| Bearing | single |
| Coupling | Direct |
