Home > Products > Power & Generators > Diesel Generator > Best Sale! ! 20kVA~56kVA Isuzu Soundproof Diesel Generator Set with CE/Soncap/CIQ Certiifcations

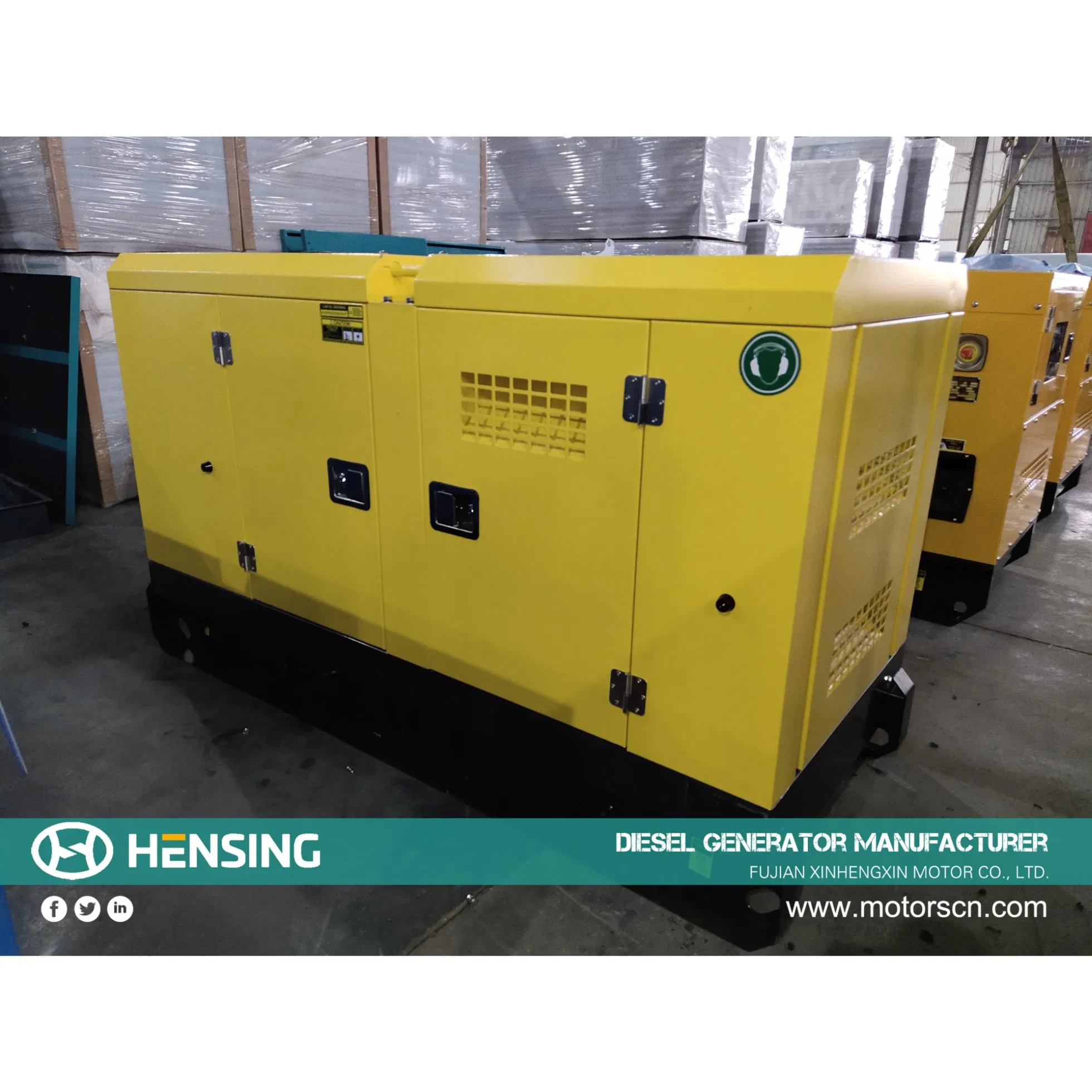

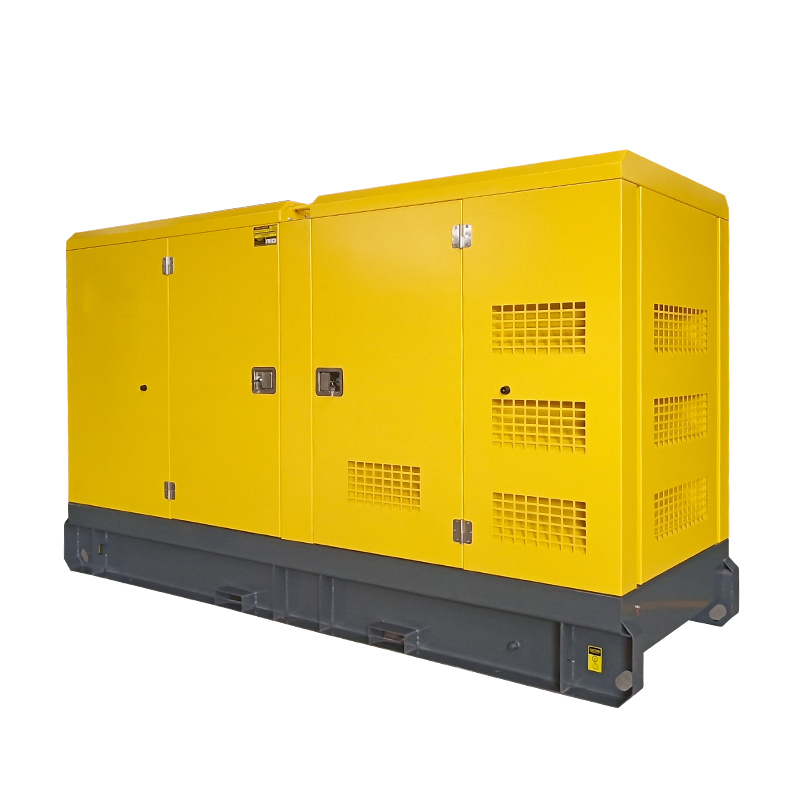

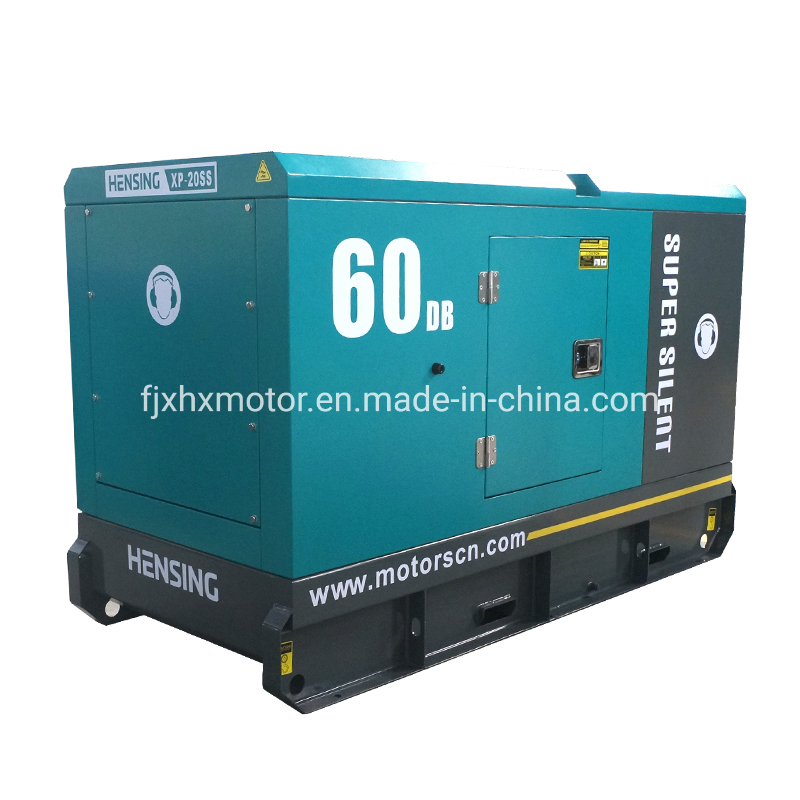

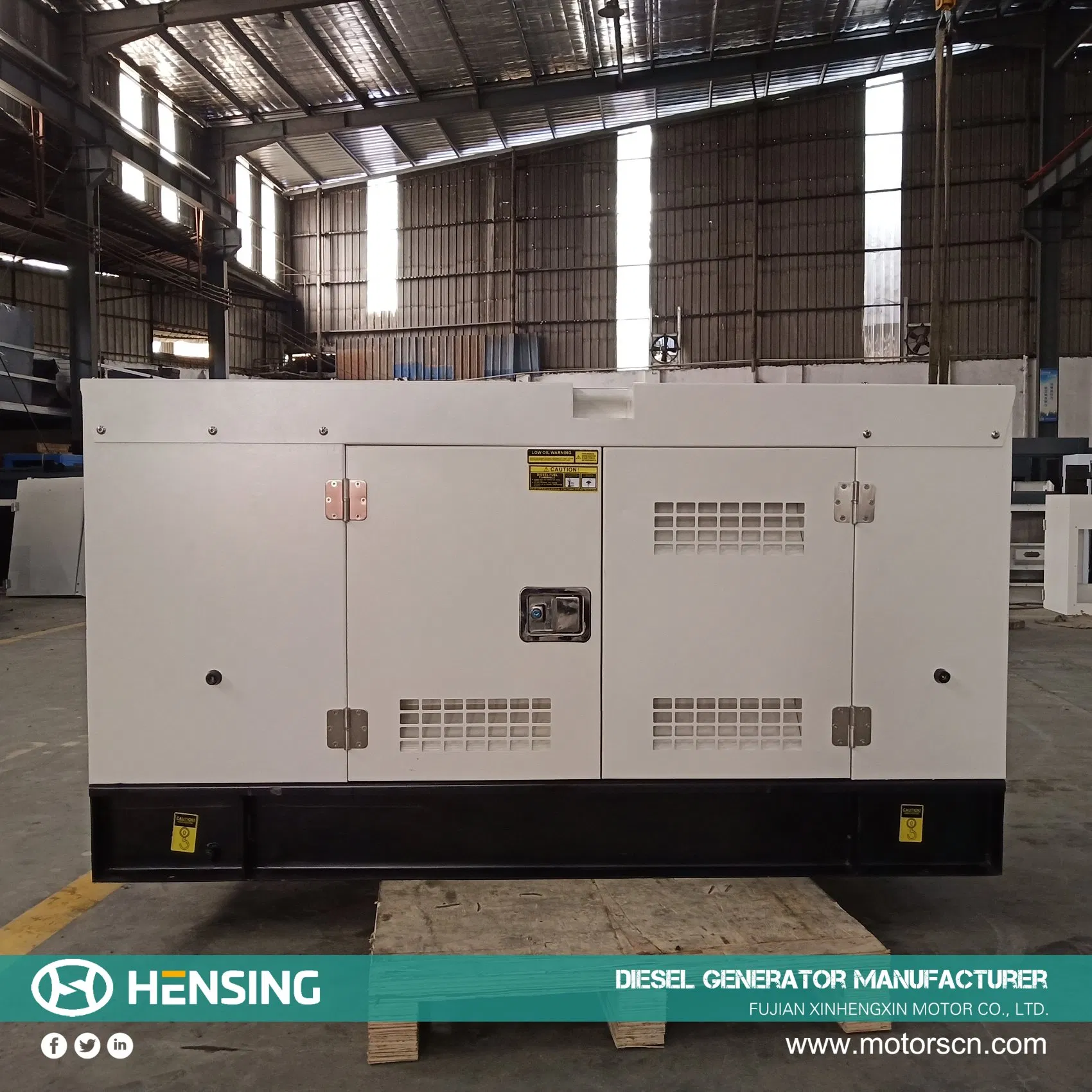

Best Sale! ! 20kVA~56kVA Isuzu Soundproof Diesel Generator Set with CE/Soncap/CIQ Certiifcations
1-GENERATOR DATA--Brush-less alternator with insulation class H and IP23-Standard CHINT circuit breaker-Steel base fuel tank with anti-vibration mounting-Based 10+ hours build-in fuel tank-9 dB muffler exhaust system, free-maintenance battery, user's manual-Flexible fuel lines and lube oil drain......
Send Inquiry
Product Description
1-GENERATOR DATA-
-Brush-less alternator with insulation class H and IP23
-Standard CHINT circuit breaker
-Steel base fuel tank with anti-vibration mounting
-Based 10+ hours build-in fuel tank
-9 dB muffler exhaust system, free-maintenance battery, user's manual
-Flexible fuel lines and lube oil drain cock
-Deepsea controller module
★Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
★Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
2-KEY FEATURES-
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Compact structure.
(5).Reliable performance
(6).Free maintenance up to 1000 hours
(6).Easy for installation and .
(7).50Hz and 60Hz both are available for choice.
3-PRODUCT ADVANTAGE & DETAILS-
★WE ARE GENSET EXPERT AND SERIOUS MAKER
-Brush-less alternator with insulation class H and IP23
-Standard CHINT circuit breaker
-Steel base fuel tank with anti-vibration mounting
-Based 10+ hours build-in fuel tank
-9 dB muffler exhaust system, free-maintenance battery, user's manual
-Flexible fuel lines and lube oil drain cock
-Deepsea controller module
★Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
★Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
2-KEY FEATURES-
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Compact structure.
(5).Reliable performance
(6).Free maintenance up to 1000 hours
(6).Easy for installation and .
(7).50Hz and 60Hz both are available for choice.
| Genset Model | Engine Model | Alternator Model | |||
| XHX-P16 | PERKINS 404A-22G1 | STAMFORD PI144G | |||
| Rated Power | 16/20 kW/kVA | Engine Power | 20.6 kW | Voltage Regulation | AVR |
| Air intake way | Natural | Excitation Method | Brushless | ||
| Standby Power | 17.6/22 kW/kVA | Governor | Mechanical | Open Type Size | 1580*810*990mm |
| Cylinder | 4 | ||||
| Rated Voltage | 220V/127V | Bore*Stroke | 84*100 mm | Open Type Weight | 720kg |
| 380V/220V | |||||
| 400V/230V | |||||
| 415V/240V | |||||
| 480V/277V | |||||
| 600V/346V | |||||
| Speed | 1500/1800 RPM | Displacement | 2.216 L | Soundproof Size | L:1900mm |
| Rated frequency | 50/60 Hz | Fuel Consumption | 237 g/kw.h | W:1000mm | |
| Compression Ratio | 23.3:1 | H:1050mm | |||
| NOTE1:OPEN TYPE can be remounted to SOUND PROOF TYPE | |||||
| 2: Any special voltage is also available as client's request | |||||
3-PRODUCT ADVANTAGE & DETAILS-

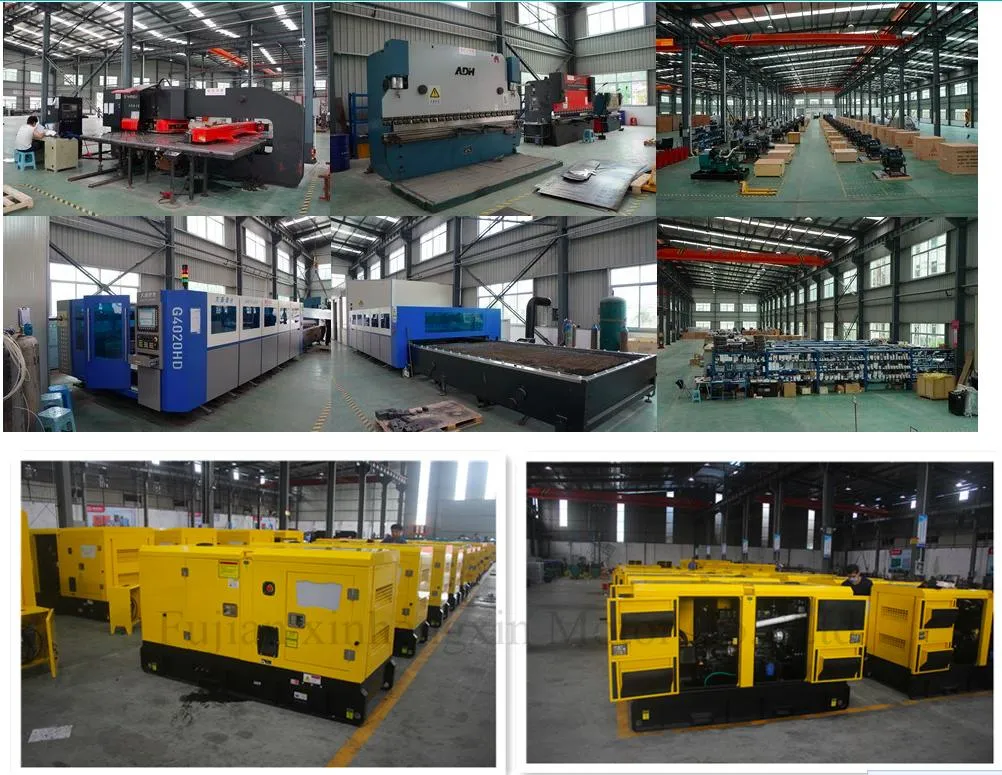

★WE ARE GENSET EXPERT AND SERIOUS MAKER
