Kpc45 50Hz 36kw Cummins 4bt3.9g2/36kw Kanpor Stf184j Alternator Diesel Generator
KPC45 50Hz 36KW Cummins 4BT3.9G2/36KW Kanpor STF184J alternator Diesel generator1. GENERATOR DATA/SPECIFICATIONVoltage Available:50Hz: 380V/220V 400V/230V 415V/240V 480V/277V60Hz: 220V/127V 230V/132V 220V/440V 240V/480V Any special voltage is also available as client's requestPrime Power:Comply ......
Send Inquiry
Product Description
KPC45 50Hz 36KW Cummins 4BT3.9G2/36KW Kanpor STF184J alternator Diesel generator
1.★ GENERATOR DATA/SPECIFICATION
Voltage Available:
50Hz: 380V/220V 400V/230V 415V/240V 480V/277V
60Hz: 220V/127V 230V/132V 220V/440V 240V/480V
Any special voltage is also available as client's request
Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
★ PRODUCT FEATURES
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice
Safety
2.★MAIN SPECIFICATION
40KVA cummins diesel genset main specifications:
| The main parameters of KPC45 | |
| Manufacturer: | KANPOR ELECTRICAL MACHINERY CO.,LTD. |
| Model: | KPC45 |
| Prime Power: | 32KW / 40KVA |
| Standby Power: | 36KW / 45KVA |
| Frequency: | 50HZ |
| Voltage: | 400/230V |
| Phase: | 3 Phase |
| P.F(COS): | 0.8 |
| Fuel: | Diesel |
| Rated Current: | 43.2A |
| Start Method: | 24V DC Start Battery |
| Accessory: | Battery, wire, exhaust pipe, muffler, damper, breaker |
| Altitude: | ≤1000m |
| Engine Specifications | |
| Brand and Model: | Original Cummins 4BT3.9-G2/36kw |
| Aspiration: | Naturally |
| Cylinder Arrangement: | 3 in line |
| Displacement: | 3.3L |
| Bore and Stroke: | 105×127 mm |
| Compression Ratio: | 23.3:1 |
| Rated RPM: | 1500rpm |
| Maximum Output Power: | 36KW |
| Governor Type: | Mechanical |
| 100% Load Fuel Consumption: | 211 g/Kw.h |
| Total Lubrication Capacity: | 7.9L |
| Total Coolant Capacity: | 10.2L |
| Cooling System: | Forced water cooling cycle |
| Alternator Specifications | |
| Manufacturer: | KANPOR Stamford HONGKONG CO. |
| Model: | STF184J |
| Rated Capacity: | 40KVA |
| Winding: | 100% Copper Wire |
| Frequency: | 50HZ |
| Speed: | 1500 RPM |
| Connecting Type: | 3 Phase and 4 Wires, "Y" type connecting |
| Power Factor: | 0.8 |
| Protection Grade: | IP23 |
| Alternator Warranty: | 2 Year No Time Limited |
| Exciter Type: | Brushless, self-exciting, with AVR |
| Insulation Class, Temperature Rise: | H/H |
| Voltage Regulation: | ≥±5% |
| Control System Specifications | |
| Main Features: | a) Instruments:Analogue Volmeter,Hours Run Meter.Water pressure Meter. b) Controls:Emergency Stop Pushbutton,Volmeter Phase Selector Switch. |
| Manufacturer: | DEEP SEA ELECTRONICS PLC (UK) |
| Model: | DSE7310 |
| Type: | Manual Operation |
| Operation: | Via a three position key switch ;with STOP(O), RUN(I) and START(II). |
| Alarm Protect: | Low Oil Pressure, High Engine Temperature, Auxiliary Shutdown, Charge Failure |
| Δ Automatic mains failure | Δ Mains simulation |
| Δ Engine control,Generator protection | Δ Block heater control |
| Δ Built in alarms and warnings | Δ Field adjustable parameters |
| Δ Remote Start operation available | Δ Free MS-Windows Remote monitoring |
| Δ Daily / weekly / monthly exerciser | Δ LED displays |
| Δ Weekly operation schedule programs | Δ Configurable analogue inputs |
| Δ Fuel pump control | Δ I/O expansion capability |
| Δ ECU control and monitoring via J1940 CANBUS | D+ preexcitation terminal |
| AUTOMATIC MAINS FAILURE | 7 binary inputs and outputs |
| Size and Weight | |
| Open Type Overall Size: | 1800mm*700mm*1340mm |
| Weight: | 930 KG |
| Soundproof Type Overall Size: | 2100mm*1000mm*1200mm |
| Weight: | 1300 KG |
★ Why Choose Us
Kanpor generator
1)The
structure is more compact, the big built-in muffler makes the noise lower;
2) Give up the traditional bottom air intake design, which can avoid dusts and other impurities inhalation and enlarge the area of air intake and discharge.
3)Separated output cable box, easy for cable connections (this kind of generator with soundproof canopy especially suitable for field construction and power tenancy);
4)The performances of weatherproof and soundproof are higher.
5)Material & thickness of canopy and frame,and others important business contents pls only email.
6)Guarantee:
Diesel generator set/Gas generator set/Alternator: 12 months from shipment date.
Gasoline generator set:6 months from shipment date.
Spare parts:3 months from shipment date.
Based on some special project, we can extended our warranty period.
7)Factory Inspection: the test items before delivery are mainly as follows:
1/.Each genset shall be put into commission more than 4 hours totally. They are tested on idle load, fully
load and 10% overload;
2/.The noise level is tested
3/.All of the meters on the control panel shall be tested
The appearance of the genset and all of the label and nameplate shall be checked.
safety

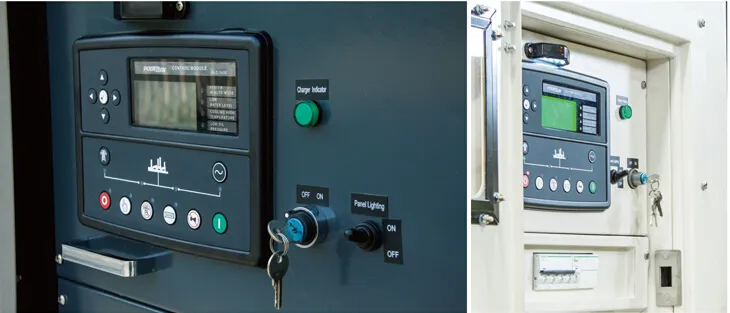

CONTROLLER
Micro-processor cored digital system.
Multiple languages, automatic control.
Connected with the mains through ATS, which can help realize automatic transfer between the mains and the generators. Also, multiple generators can be paralleled for bigger power needs.
★ FAQ
1.
Q.:What is your warranty period?
A.:Our warranty is 1 year or 1200 running hours whichever comes first. But based on some special project, we can extended our warranty period.
2.
Q.:Does your generator have global warranty?
A.:Yes, We kanpor genset supply the warranty.Also most of our products like Deutz,Cummins, Doosan,Yuchai,Weichai etc.power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3.
Q.:Can you accept OEM?
A.:Yes, we can accept OEM.
4.
Q.:What is your payment terms?
A.:We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order,we can do something on payment item.
5.
Q.:What is your delivery time?
A.:Our normal delivery time is 2 to 3 weeks. But if your order is using special engine and alternator, then the delivery time is longer.
6.
Q.:Where is your factory and how to contact?
KANPOR ELECTRICAL MACHINERY CO.,LTD
Q.:Where is your factory and how to contact?
KANPOR ELECTRICAL MACHINERY CO.,LTD
Factory Add.:No.88 Shimenyuan Industrial Area,Fu'an,Ningde,Fujian province China
Head Office:2802-03, Bld 1#, The Central Fifth Avenun, Taijiang Area, Fuzhou, Fujian, China
Mr Kevin Lu
kanpor.en.made-in-china.com
kanpor.en.made-in-china.com
http://kanpor.en.made-in-china.com
http://kanpor.en.made-in-china.com
