China 4kw Side Channel Blower Regenerative Blower for Printing Equipment

Product Description

4kw Side Channel Blower Regenerative Blower for Printing Equipment

Technical parameters	Technical parameters	DHB 830C 004
Maximum airflow	m³/h	700
Maximum vacuum	mbar	-150
Maximum pressure	mbar	140
Frequency	Hz	50
Voltage	V	345-415△600-690Y
Current	A	9.5△/5.5Y
Output	kW	15
Motor revolutions	min-1	2800
Weight approx	Kg	57
Sound level	dB (A)	70

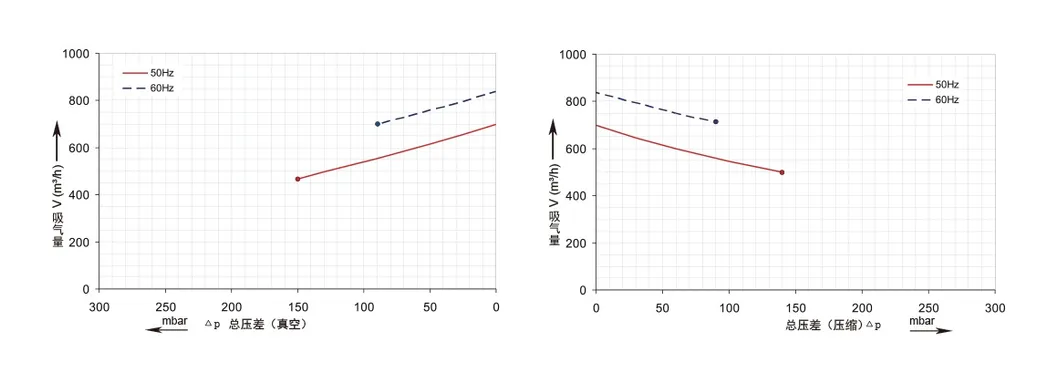

The following Pressure-flow performance curve is measured under the condition of suction of 15 °C air and exhaust pressure 1013mbar.
The allowable difference is±10%.When the inlet air and ambient temperature do not exceed 25 °C,
the following diagram can still be achieved.
4kw Side Channel Blower Regenerative Blower for Printing Equipment

Q1	How long is the blower life?
A1	3-5 years in normal condition.
Q2	How long is the warranty period for the blower?
A2	18months free warranty period, and a lifetime maintenance.
Q3	Can the blower be customized?
A3	Normal Blowers are standard parts, but the voltage can be customized. And blower can be special treatment according to customer special requirement. Also the IE2/IE3 standard blower is available.
Q4	How do you control the product's quality?
A4	All the products have quality testing and dynamic balance before delivery by Our professional QC.
Q5	How long of the loading time?
A5	5-7 days after order confirmed and receiving of deposit.
Q6	What's the of the blower usage applications?
A6	The blower can be used either for vacuum or pressure for more than 30 different applications: Such as The Adsorption Dryer, Welding Fume Extraction, Pneumatic Conveying, Biogas Conveying, Sewage Treatment,Aquaculture, Printing Equipment, Slaughtering Equipment, CNC Engraving Machine, hotel SPA pool and Swimming Pool, Electroplating equipment, Central Feeding, Textile industrial, Hospital equipment, Laboratory Testing, Food Package, Air Purification, dust collector, dental suction machine, Airport ground air-conditioning equipment, Oil and Natural gas industrial, etc;
