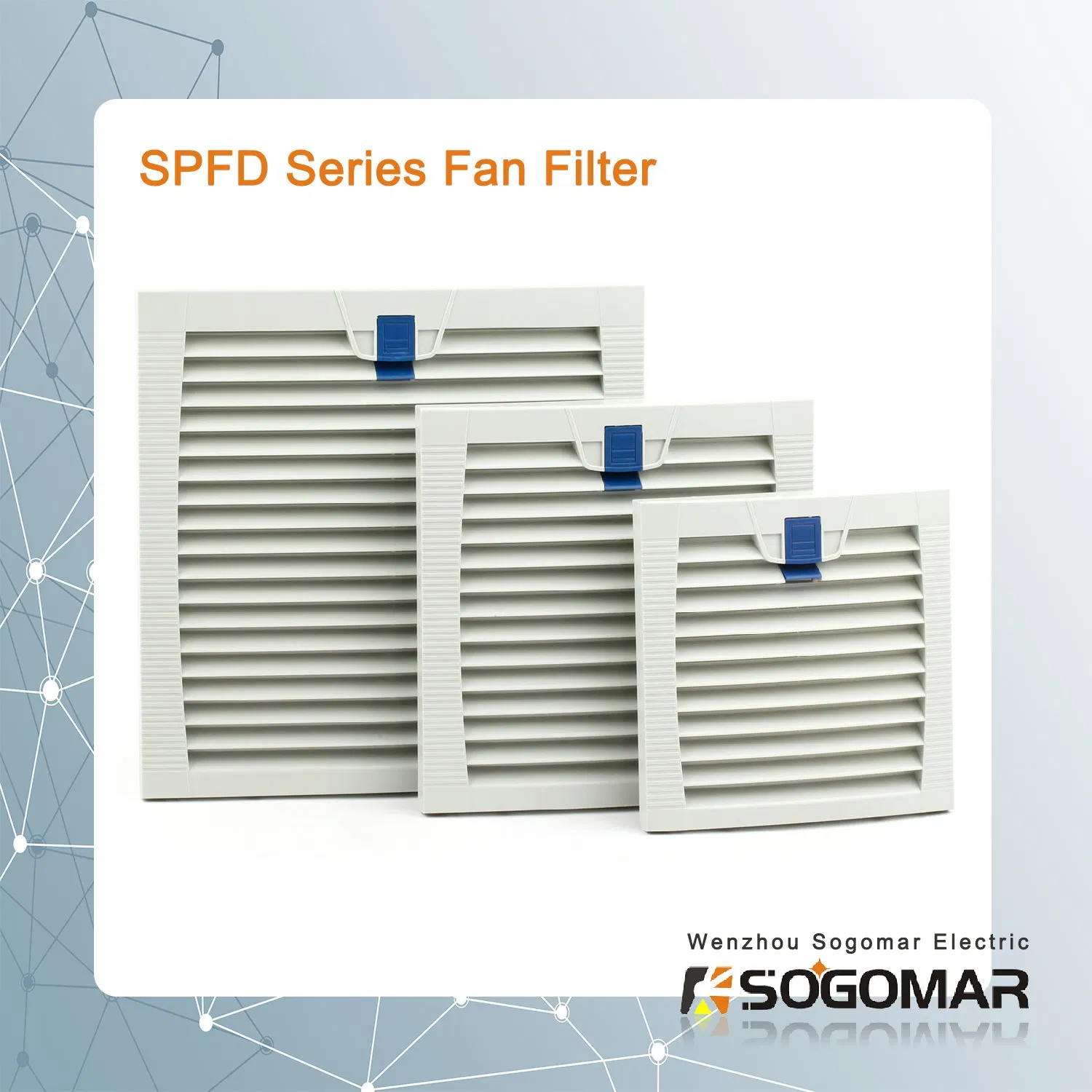

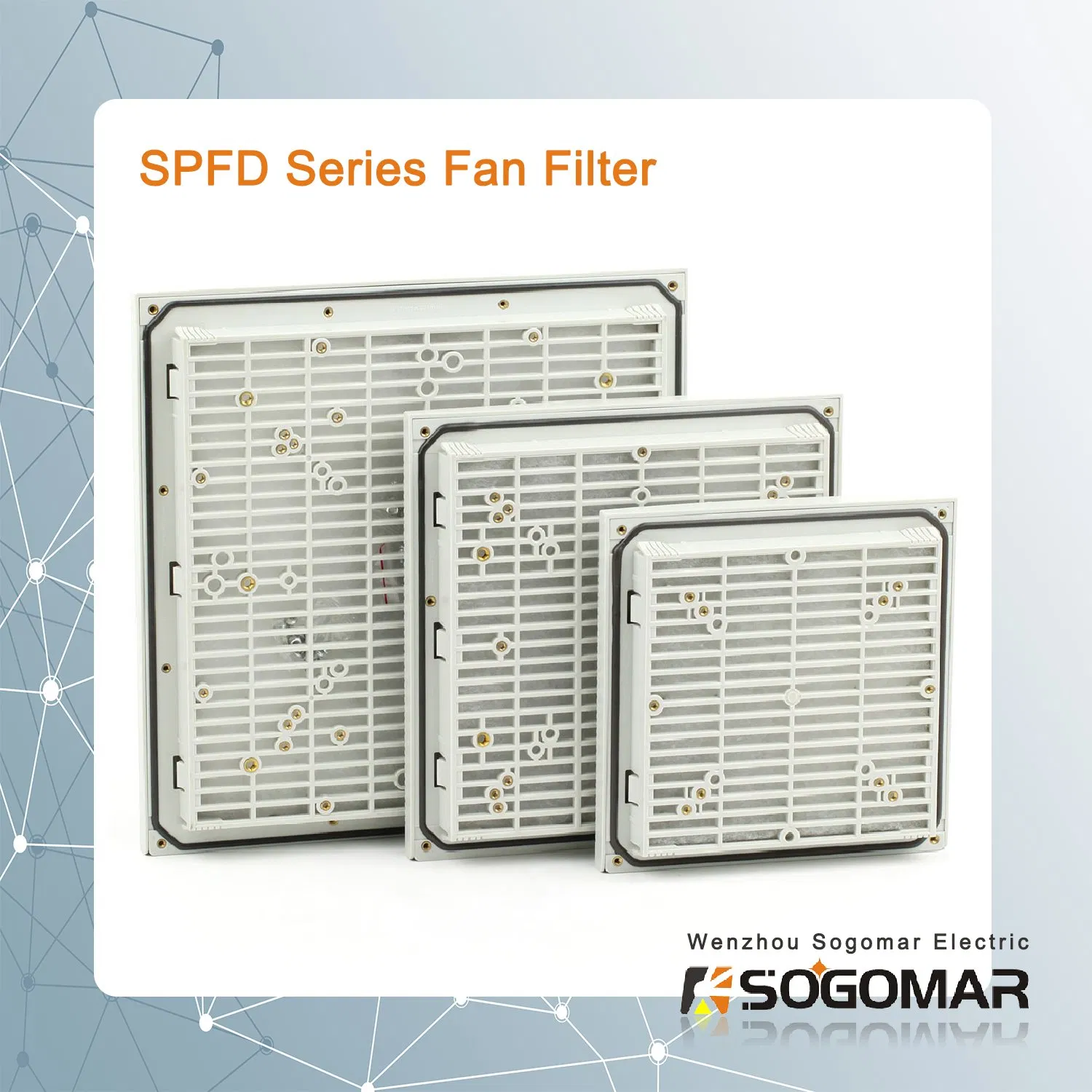

Spfd Series Fan Filter with Thicken Rubber Water-Proof Ral7035
Information1. Material of net body: ABS resin of flamer resistance2. Filter screen material: polyester fiber syntheticresin3. Pressure lose of filter screen: initial 6.9mm AQ; terminal 24mmAQ4. Max wind speed: 2.0m/sec5. Operation temperature range: -10ºC to +55ºC6. Effective wind ......
Send Inquiry
Product Description
Information
1. Material of net body: ABS resin of flamer resistance
2. Filter screen material: polyester fiber syntheticresin
3. Pressure lose of filter screen: initial 6.9mm AQ; terminal 24mmAQ
4. Max wind speed: 2.0m/sec
5. Operation temperature range: -10ºC to +55ºC
6. Effective wind speed: 50m3/min
7. Collection coefficient: 89%
Dimension
1. Material of net body: ABS resin of flamer resistance
2. Filter screen material: polyester fiber syntheticresin
3. Pressure lose of filter screen: initial 6.9mm AQ; terminal 24mmAQ
4. Max wind speed: 2.0m/sec
5. Operation temperature range: -10ºC to +55ºC
6. Effective wind speed: 50m3/min
7. Collection coefficient: 89%

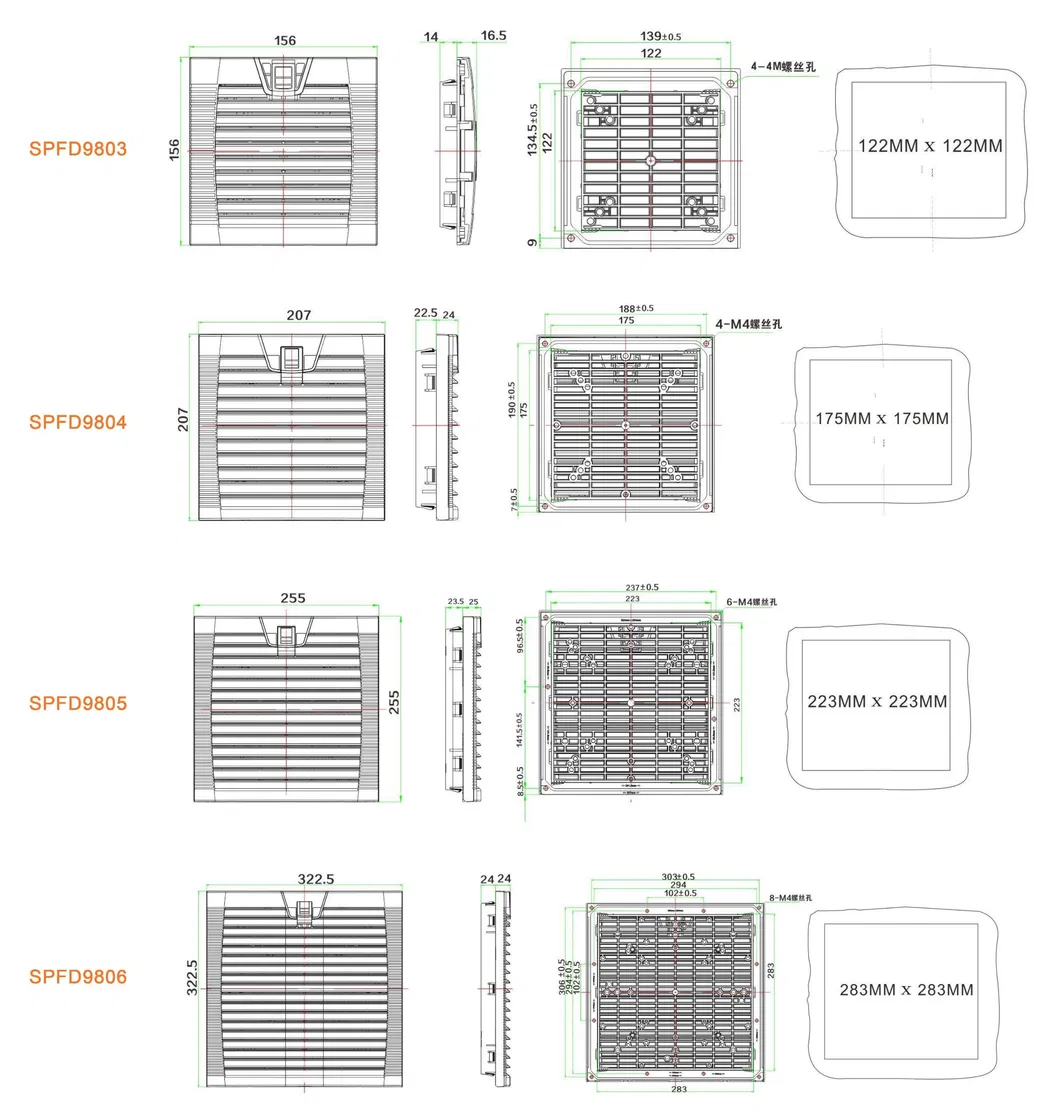

| Type | Dimension(mm) | Application Fan size |
| SPFD9803 | 156X156 | 80X80, 110X110, 120X120 |
| SPFD9804 | 207X207 | 110X110, 120X120, 150X150, 150X172 |
| SPFD9805 | 255X255 | 120X120, 150X150, 150X172, 180X180, 200X200, 225X225, Φ220, Φ230 |
| SPFD9806 | 322.5X322.5 | 120X120, 150X150, 150X172, 180X180, 225X225, 280X280, Φ220, Φ230 |
Dimension
