4V Series Pneumatic Directional Solenoid Valve 4V420

Regis's all-new directional valves are available in two-way, three-way configurations in port sizes from M5 to 1/2". Select either a direct-acting poppet or solenoid-controlled pilot operated balanced spool design. Spool valves are body ported but can be bolted to a parallel circuit manifold.
These electronic valves offer high flow in a small package, and are constructed of aluminum, stainless steel and thermoplastic materials. The four-way valves are also available in 3 position versions with either pressure center, closed center or exhaust center spool options.
Materials: Aluminum, Stainless Steel, Thermoplastic
Maximum Pressure: Vacuum to 150 psig (direct acting only); 20 to 125 psig (spool valves)
Response Time: Less than 20 ms
Mounting: Manifold standard.
Manual Override: Locking or non-locking
Electrical Connection: DIN terminal with LED Indicator or Wire Lead
Temperature Range: 0 to 65°C (32° to 150°F)
Seals: NBR

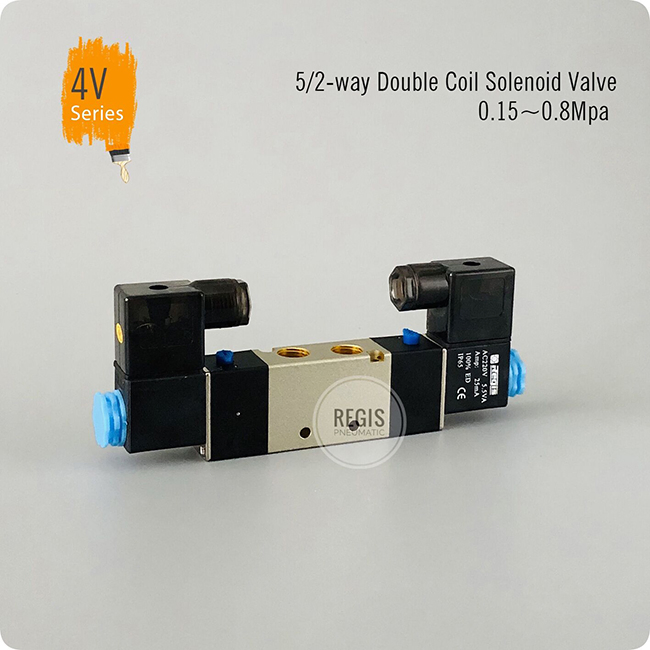

4V Series Valve

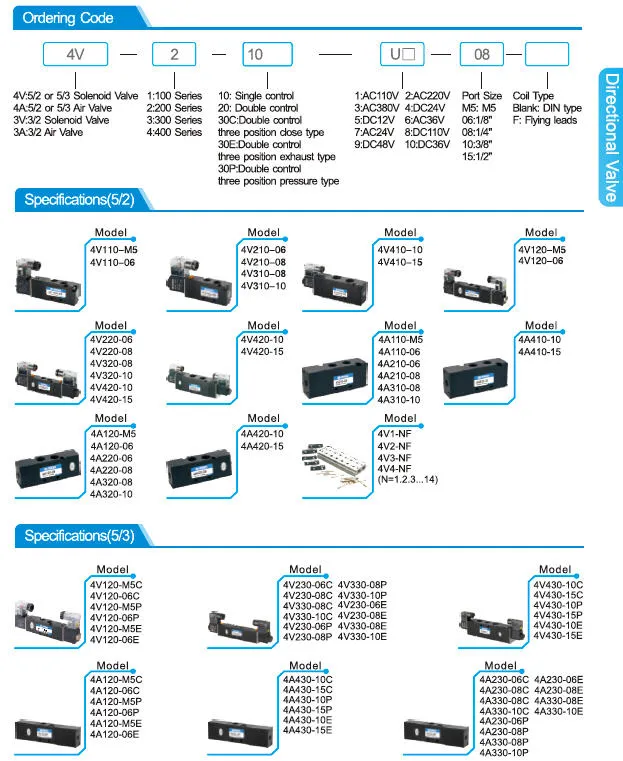

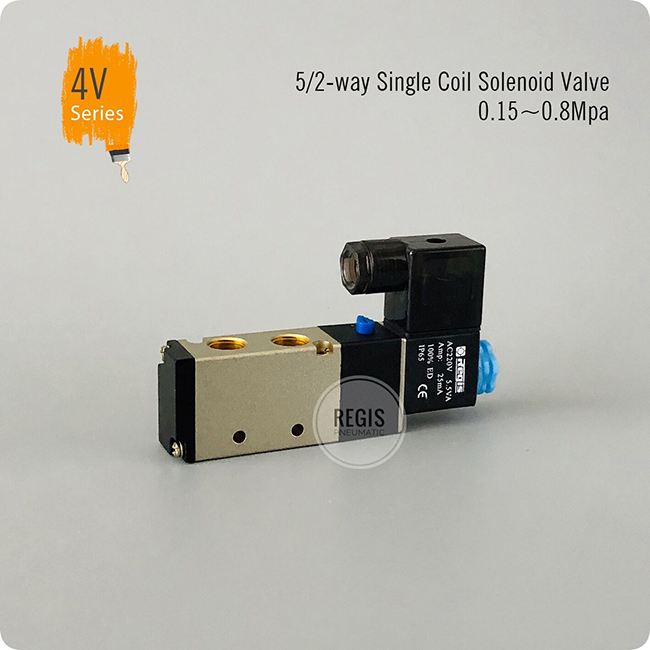

4V series solenoid valves are suitable for operating double or single acting cylinders in pneumatic control system. They have 5 ports and 2 or 3 positions. And 4 type's valve bodies are provided. They are 4V100, 4V200, 4V300 and 4V400 etc. The ports size can be from M5 to 1/2".
The solenoid operated valves can be mounted in line.
The pilot valve is supplied with manual override and connector as standard.

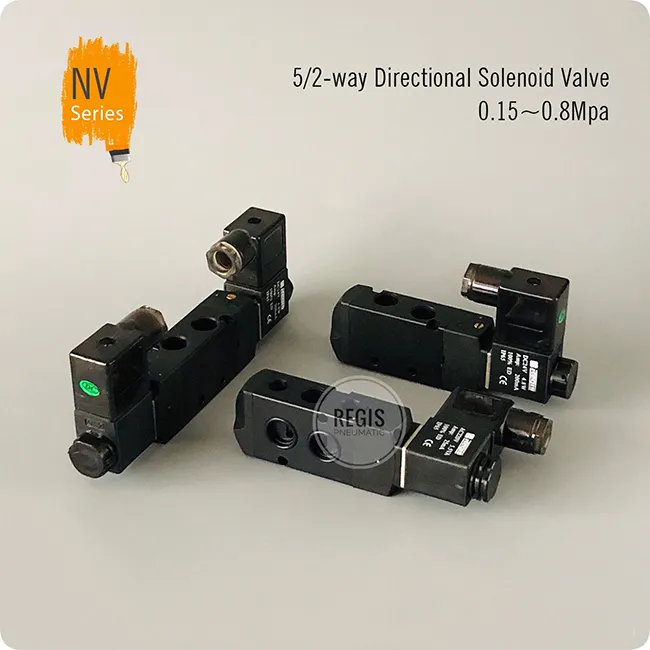

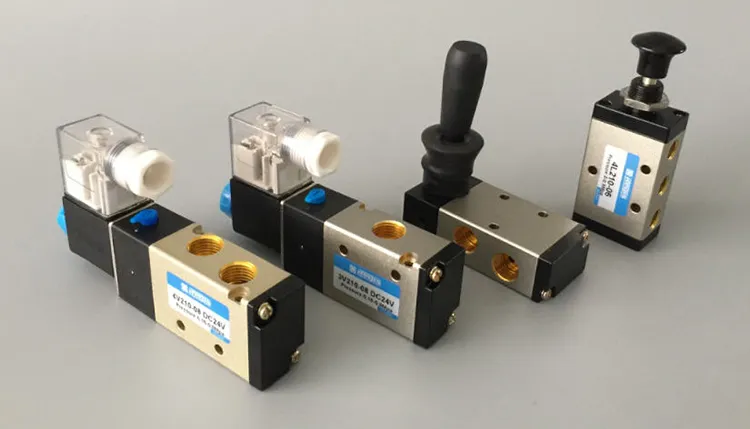

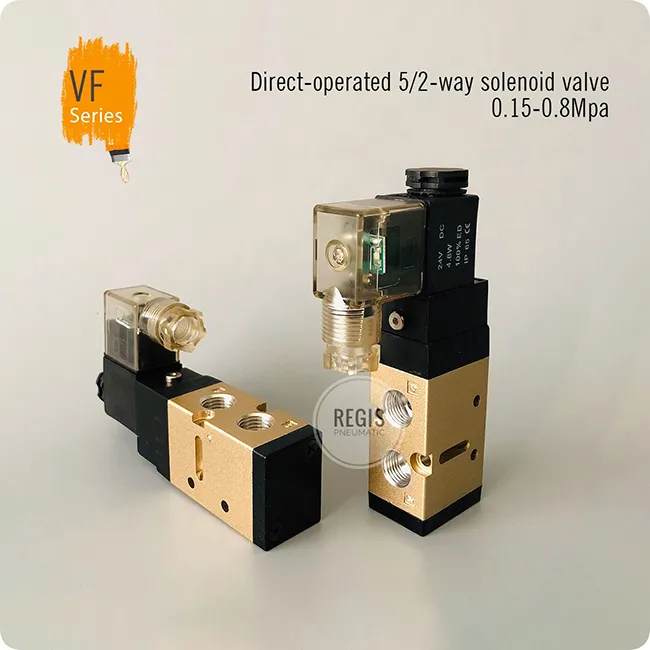

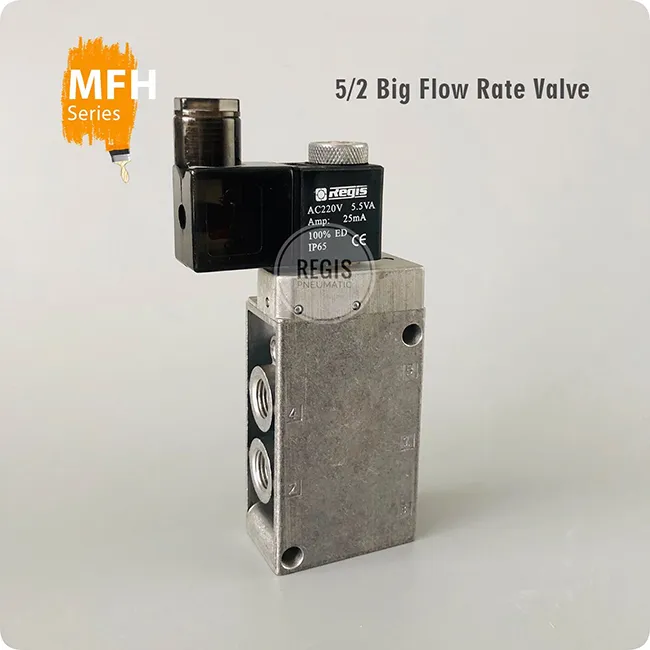

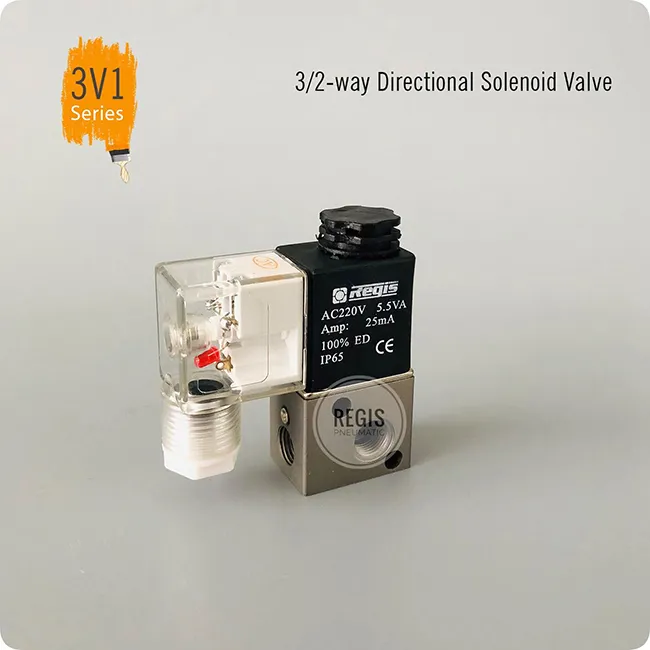

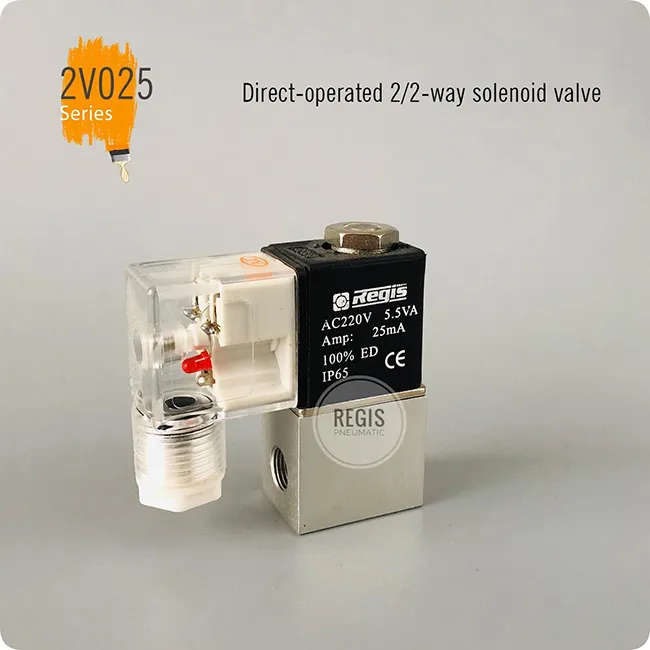

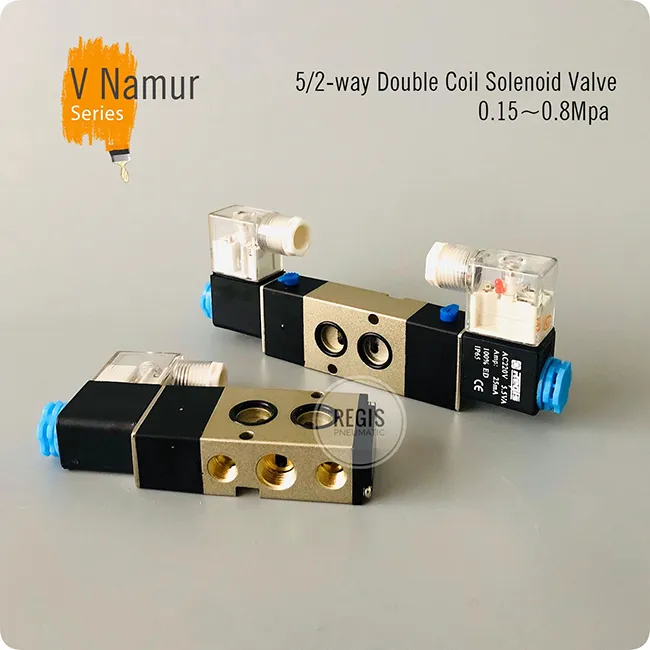

REGIS HOTTEST DICRECTIONAL SOLENOID VALVE COLLECTION
