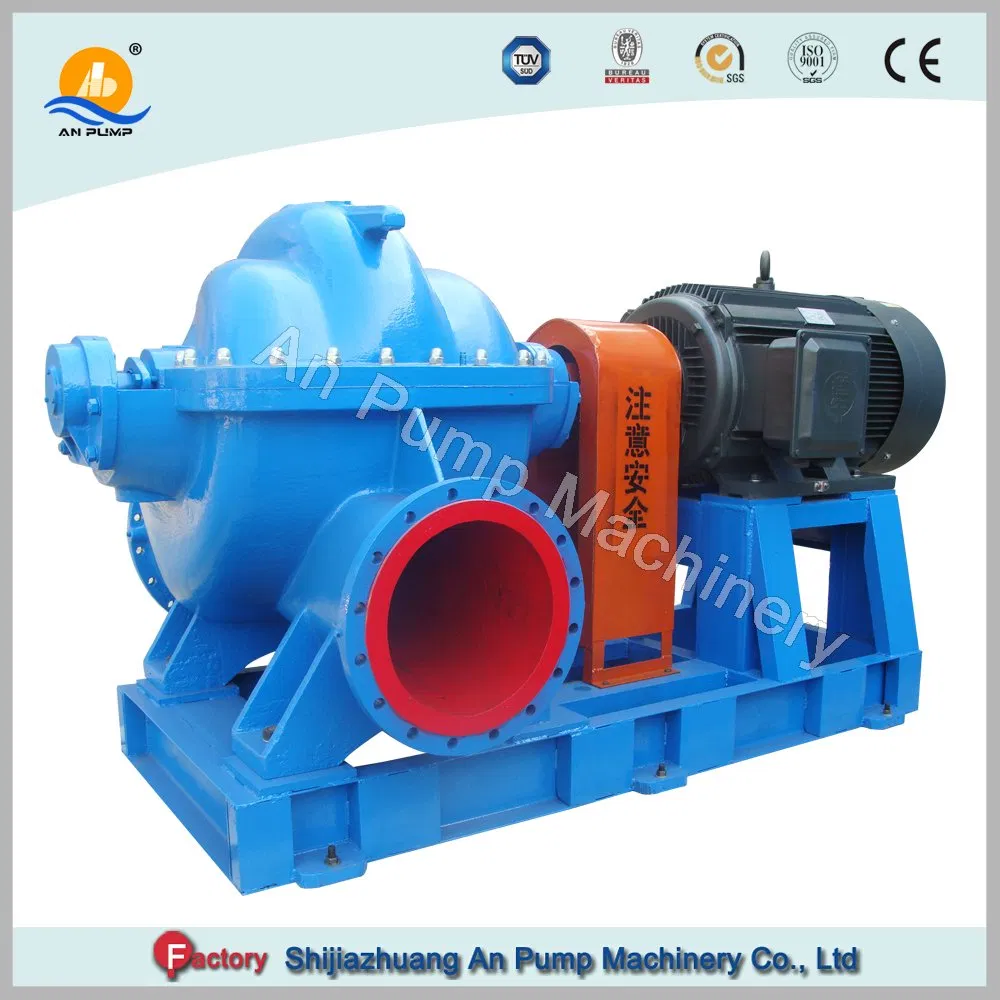

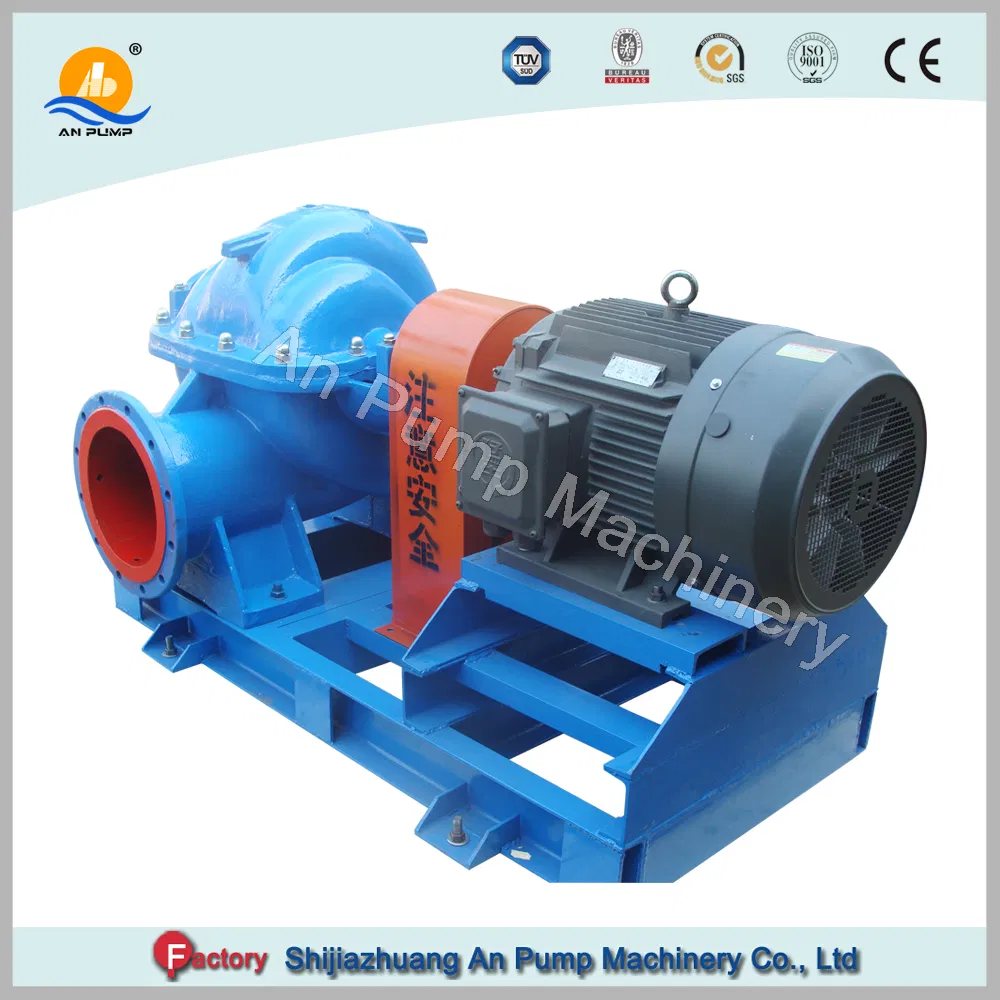

Large Capacity Double Suction Split Casing Pump
Large Capacity Double Suction Split Casing PumpQS Horizontal double suction split case pump, the casing is axially split, which permits removal of the complete rotor without moving either piping or motor. Pumps generating high heads have double volutes to reduce radial forces. Replaceable wear ring ......
Send Inquiry
Product Description
Large Capacity Double Suction Split Casing Pump
QS Horizontal double suction split case pump, the casing is axially split, which permits removal of the complete rotor without moving either piping or motor. Pumps generating high heads have double volutes to reduce radial forces. Replaceable wear ring protect the casing at the impeller running clearances. Vertical or horizontal, soft packing or mechanical seal, grease or oil lubrication bearing on request. It is also electric motor or diesel engine driven on request.
2.QS Split case Water pump Feature
(1) Have QS and QSH two types.
Viewed from motor, the direction of the QSH pump is anti-clockwise, that is the suction in the left, the discharge in the right. The rotating direction of the type QS pump is clockwise, that is the suction in the right, the discharge in the left. Also can move the driver to another edge according to the user's requires. Then, the rotating direction, the suction and discharge direction is in the opposite as the described above.
(2) Supply full set split-casing centrifugal pump, motor, coupling, the inlet diameter less than 200mm match the common base.
(3) The pump is axial split casing construction.
(4) Large capacity
3.QS Split case Water pump Performance Data Sheet
4.QS Split case Water pump Application
Application on site
Company Introduction
Shijiazhuang An Pump Machinery Co., Ltd is one over 30 years experienced pump manufacturer (established at 1986) in mining and mineral, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc.; An Pump Machinery is the pump factory has its own pump selection & design, research and development team to assure provide you efficient, energy saving slurry pump, water pump, diesel water pump, chemical pump and irrigation pump in selection & design, use and maintenance program.
An Pump Machinery is the pump factory approved by ISO9001, ISO14001 and OHSAS18001. We also have the certificate of CE. Our factory is over 50,000 square meters with the professional engineer over 20. The Max casting parts weight we could do one time is 7 tons. And we have capacity to produce 600 tons per month and with the heat treatment furnace dimension 6mx5.5mx2.5m. The Max parts we could machine is 6.4 meters and we have capacity to assemble the pump over 1800mm and our cranes capacity is 30 tons.
An Pump Machinery products include slurry pump, sewage pump, water pump, acid resistant or chemical pump, irrigation pumps, fire pumps and other products exported to over 90 countries all over the world. The application covers many fields, such as mining and mineral processing, dredger, tailings transportation, mining, steel, desulfurization pump, boiler feed water, construction, irrigation, water conservancy facilities, sewage treatment, drainage and water supply.
In the era of rapid development of science and technology, An Pump Machinery team take the entrepreneurial spirit "excellence and constant product quality, brand known worldwide and Credit-based", business purpose "the achievements of create brand enterprise and industry pioneer", to help you out and provide quality & cheap innovative products!
FAQ
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, America and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Contact Us
QS Horizontal double suction split case pump, the casing is axially split, which permits removal of the complete rotor without moving either piping or motor. Pumps generating high heads have double volutes to reduce radial forces. Replaceable wear ring protect the casing at the impeller running clearances. Vertical or horizontal, soft packing or mechanical seal, grease or oil lubrication bearing on request. It is also electric motor or diesel engine driven on request.
2.QS Split case Water pump Feature
(1) Have QS and QSH two types.
Viewed from motor, the direction of the QSH pump is anti-clockwise, that is the suction in the left, the discharge in the right. The rotating direction of the type QS pump is clockwise, that is the suction in the right, the discharge in the left. Also can move the driver to another edge according to the user's requires. Then, the rotating direction, the suction and discharge direction is in the opposite as the described above.
(2) Supply full set split-casing centrifugal pump, motor, coupling, the inlet diameter less than 200mm match the common base.
(3) The pump is axial split casing construction.
(4) Large capacity
3.QS Split case Water pump Performance Data Sheet
| Model QS | Flowrate (m3/h) | Head (m) | Speed (rpm) | Power (KW) |
| QS150 | 110~220 | 35~84 | 2900 | 30~55 |
| QS200 | 160~351 | 31~100 | 2900 | 37~110 |
| QS250 | 324~612 | 8.6~71 | 1450 | 22~132 |
| QS300 | 504~972 | 8~98 | 1450 | 30~300 |
| QS350 | 745~1663 | 10~140 | 1450 | 55~680 |
| QS400 | 900~1620 | 32~98 | 980~1480 | 155~500 |
| QS500 | 1150~2450 | 10.6~108 | 740~970 | 110~800 |
| QS600 | 2304~4000 | 13~80 | 730~970 | 185~900 |
| QS700 | 2111~4896 | 39.5~99.5 | 740~980 | 560~1250 |
| QS800 | 3960~7200 | 23.5~84 | 600~740 | 450~1600 |
| QS1000 | 6000~9900 | 32~52 | 600~990 | 1250 |
| QS1200 | 5832~14400 | 6~95.7 | 500~745 | 710~3450 |
4.QS Split case Water pump Application
| ndustry | Plumbing Applications |
| Generalwatersupply | Circulation of HVAC building systems,water booster service, boilerfeed,general circulation service andmore. |
| Agriculture/Food/Beverage | Irrigation,watersupply,food processing,beverage processing ,fertilizers. |
| Manufacturing | Pulp and paper fans,plastic&rubber,metal&steel, pharmaceutical,papermills,airwash,marine ballast service. |
| Fire/DisasterRelief | Firepumps,fireprotection,flood control,disaster relief, federal/military. |
| Utilities:Water/Wastewater | Power Generation stations,dewatering,desalination, energy recovery turbines |
| Chemical/Mining | Chemical plants,refineries,petroleum distribution,coalsites, ethylene glycol pumping. |

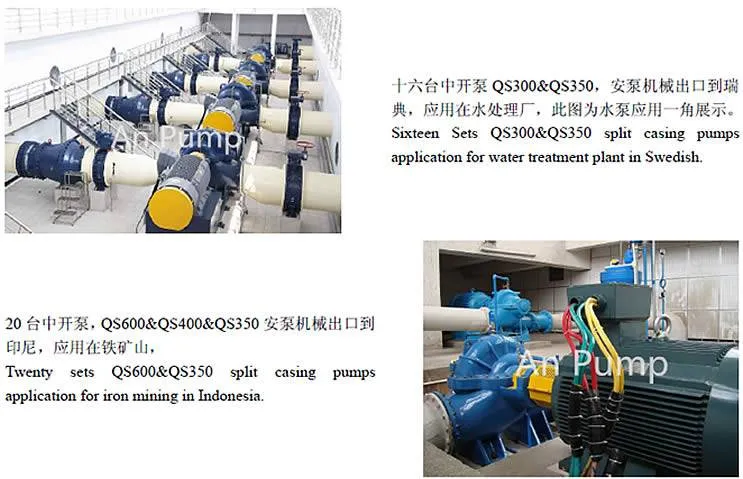

Application on site
Company Introduction
Shijiazhuang An Pump Machinery Co., Ltd is one over 30 years experienced pump manufacturer (established at 1986) in mining and mineral, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc.; An Pump Machinery is the pump factory has its own pump selection & design, research and development team to assure provide you efficient, energy saving slurry pump, water pump, diesel water pump, chemical pump and irrigation pump in selection & design, use and maintenance program.
An Pump Machinery is the pump factory approved by ISO9001, ISO14001 and OHSAS18001. We also have the certificate of CE. Our factory is over 50,000 square meters with the professional engineer over 20. The Max casting parts weight we could do one time is 7 tons. And we have capacity to produce 600 tons per month and with the heat treatment furnace dimension 6mx5.5mx2.5m. The Max parts we could machine is 6.4 meters and we have capacity to assemble the pump over 1800mm and our cranes capacity is 30 tons.
An Pump Machinery products include slurry pump, sewage pump, water pump, acid resistant or chemical pump, irrigation pumps, fire pumps and other products exported to over 90 countries all over the world. The application covers many fields, such as mining and mineral processing, dredger, tailings transportation, mining, steel, desulfurization pump, boiler feed water, construction, irrigation, water conservancy facilities, sewage treatment, drainage and water supply.
In the era of rapid development of science and technology, An Pump Machinery team take the entrepreneurial spirit "excellence and constant product quality, brand known worldwide and Credit-based", business purpose "the achievements of create brand enterprise and industry pioneer", to help you out and provide quality & cheap innovative products!
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, South-East Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, America and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Contact Us
