Water Pump/Centrifugal Pump/End Suction Pump

Water Pump/Centrifugal Pump/End Suction Pump

Brief introduction

Water Pump/Centrifugal Pump/End Suction Pump is an energy- saving pump designed by teamwork in the whole nation, it is improved on a basis on model BA, B and other single-stage water centrifugal pump. The advantages: its hydraulic capability is distributed reasonably, wide option for user, conveniently check and repair, the efficiency  is up to advanced international level. This pump is applied to the oil products, not containing soild particles viscosity lessthan 120CST and the temperature  should be -20ºC~250ºC.

Features

1. IWater Pump/Centrifugal Pump/End Suction Pump is designed according to the capability and size stipulated in the International Standard ISO2858, it is composed of pump body, pump cover, impeller, shaft, ring seal, sleeve and sus-p ended bearing units.
2. The pump body and pump cover in IY series are separated from the back of impeller, that is to say in general, back open structure, whose advantages: convenient overhaul, when checking and repairing, the pump body intake  pipe, discharge pipe and motor need not to move, just disassemly the middle connector of extended coupling to quit the rotor units for overhaul.
3. The pump shell (that is pump body and pump cover) forms the workroom of pump.impeller, shaft and rolling bearing are the rotors for the pump. Suspended bearing units support the rotors in the pump. The rolling bearing stands the radial load and axial force.

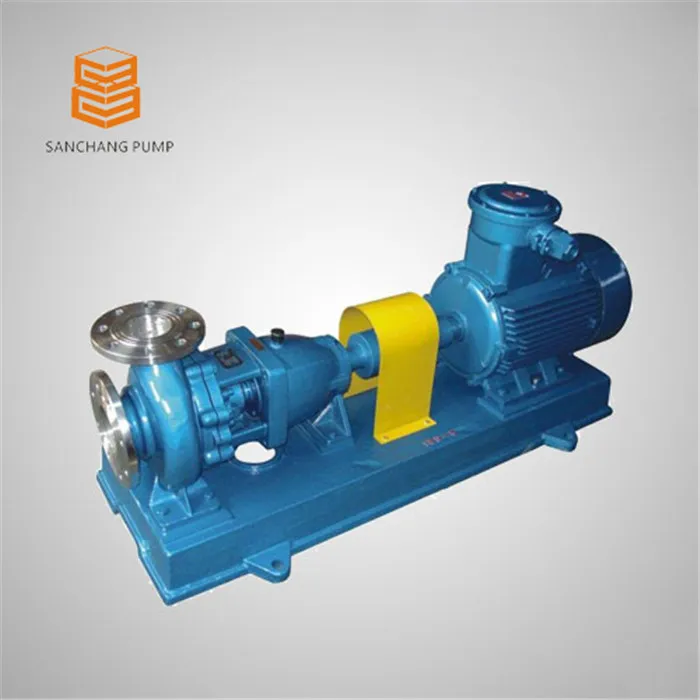

Pump picture

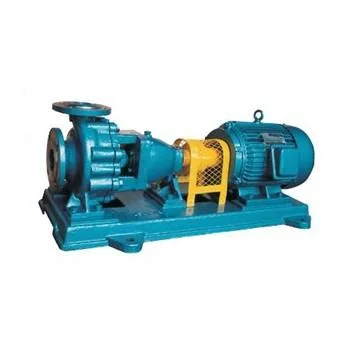

The picture is one IH type water pump with motor and common base

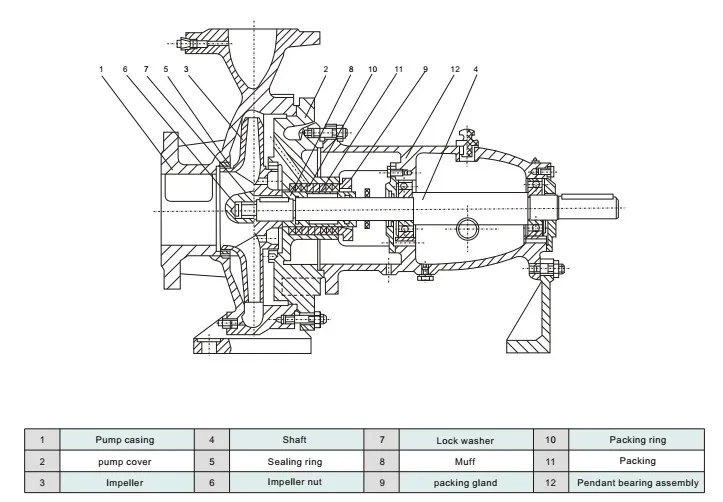

Structure diagram

Water Pump/Centrifugal Pump/End Suction Pump applications
Every series of food machining and medicine produce.
Environment protect system.
Waste water treatment for papermaking, metallurgy, galvanization, smelting, dye.
Electroplate and Dyeing system.
Industrial and chemical sump treatment.
Explosion proof motor for oil, alcohol and other explosive liquid.
