China High Efficiency Motor Driven Split Case Water Pump for Waterworks

Product Description

High Efficiency Motor Driven Split Case Water Pump for Waterworks

1.Technical Parameters

Pump Model	Capacity		Head (m)	Speed (r/min)	Power	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
Pump Model	m3/h	L/S	Head (m)	Speed (r/min)	Shaft Power (kw)	Efficiency (%)	NPSH r(m)	Impeller's Dia(mm)	Net Pump Weight(kg)
TPOW125-480(I)	109.2	30.3	80	1480	56.6	42	2.3	475	500
	328.5	91.3	76		85	80
	380.4	105.7	71		96.8	76
TPOW125-480(I)A	100	27.8	70		47.1	40.5		443
	307.3	85.4	66.5		70.9	78.5
	350.9	97.4	62		79.5	74.5
TPOW125-480(I)B	80.4	22.3	59		33.1	39		412
	282	78.3	56		55.9	77
	300.4	83.4	53		59.4	73
TPOW125-480(I)C	60	16.6	47		20.2	38		381
	250.4	69.6	44.2		39.7	76
	270.4	75.1	40.8		41.7	72
TPOW125-480	100	27.8	72	1480	46.7	42	2.7	475	500
	294.5	81.8	69.5		70.6	79
	342	95	64		78.4	76
TPOW125-480A	90.1	25	63		37.7	41		443
	274.8	76.3	60.5		58	78
	320.2	88.9	55.1		64.1	75
TPOW125-480B	85.3	23.7	55		31.9	40		412
	257.2	71.4	53		48.2	77
	284.5	79	48		50.3	74
TPOW125-480C	78.5	21.8	45		24.7	39		381
	230	63.9	43.5		35.9	76
	238.8	66.3	41.3		36.8	73

2.Structure
High Efficiency Motor Driven Split Case Water Pump for Waterworks

TPOW series double suction centrifugal pump is mainly used for transporting water or liquid which has the similar physical and chemical properties to water, It has large flow because there are two suction inlets on the impeller, so our centrifugal pump can be applied to urban flood drainage, power station, water supply, farm irrigation, water plant, pumping station, water circulation for air conditioner, heating water circulation, industrial water supply system, fire water supply and other fields.

3.Feature

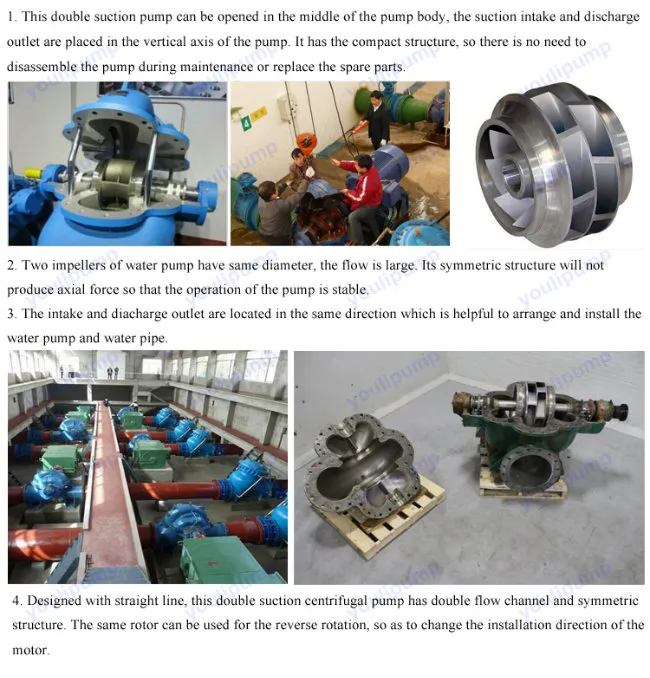

High Efficiency Motor Driven Split Case Water Pump for Waterworks

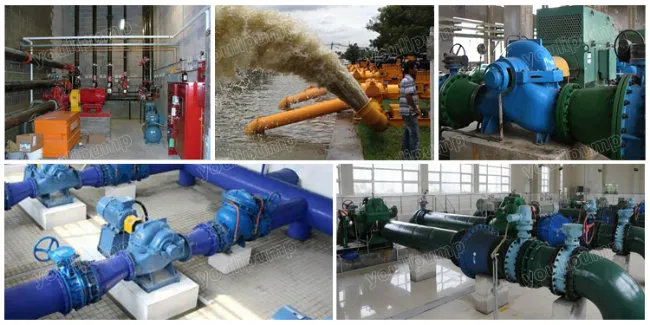

4.Application
1.the pump can be used for fire extinguishing for motor, transformer, factory and oil system. It can be used as standby fire pump in fire water system.
2.The double suction centrifugal pump is widely used in urban drainage, urban water supply, water plant. central heating system drainage for power plant. paper mill, water supply for air-conditioning system.
3.This kind of water pump has large flow, it is applied to farmland irrigation and drainage water conservancy.
4.The large solid particles which can be passed through are 20% of the pump impeller, our centrifugal pump is used for conveying wastewater, sewage in mine, drainage pumping station, iron and steel metallurgy, petrochemical refining and other fields.
High Efficiency Motor Driven Split Case Water Pump for Waterworks

5.Service

1.Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.
2. On-sales Service: we will clear show you everything in fact when you place an order with us. We will take photos or videos to show you our production situation, and report the production situation to you.
3. Package: We use plywood case to pack our pump, which is durable for ocean transport.
4. Delivery: Delivery time will be on time as the contract. Usually, our company need 25 working days for diesel engine pump, and for bare shaft pump, it takes 15 working days,
5. Warranty: 12 month for the pump body, 3 month for the main working parts.

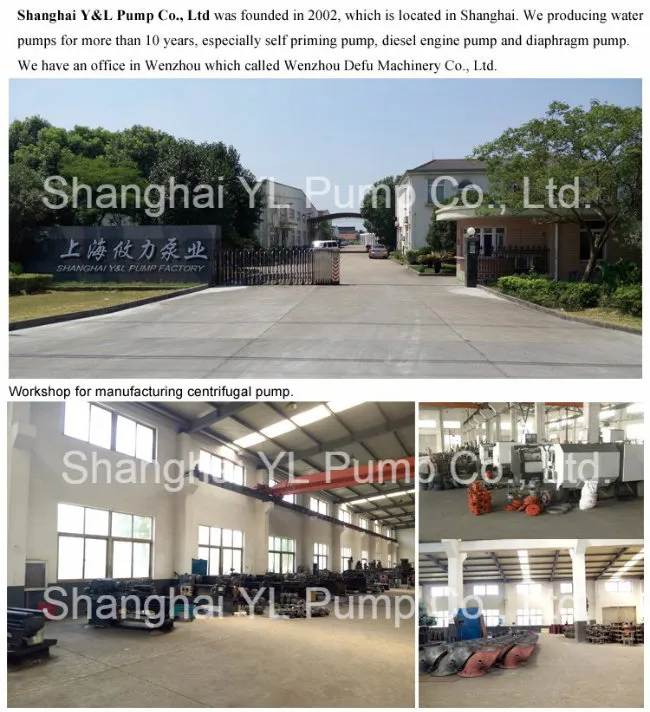

6.Factory
High Efficiency Motor Driven Split Case Water Pump for Waterworks
